ABB VUCG.N - Type VUCL.B with Tap Selector III and with Tie-In Resistor Switch

40 Technical guide VUC | 1ZSC000562-AAX en, Rev. 1

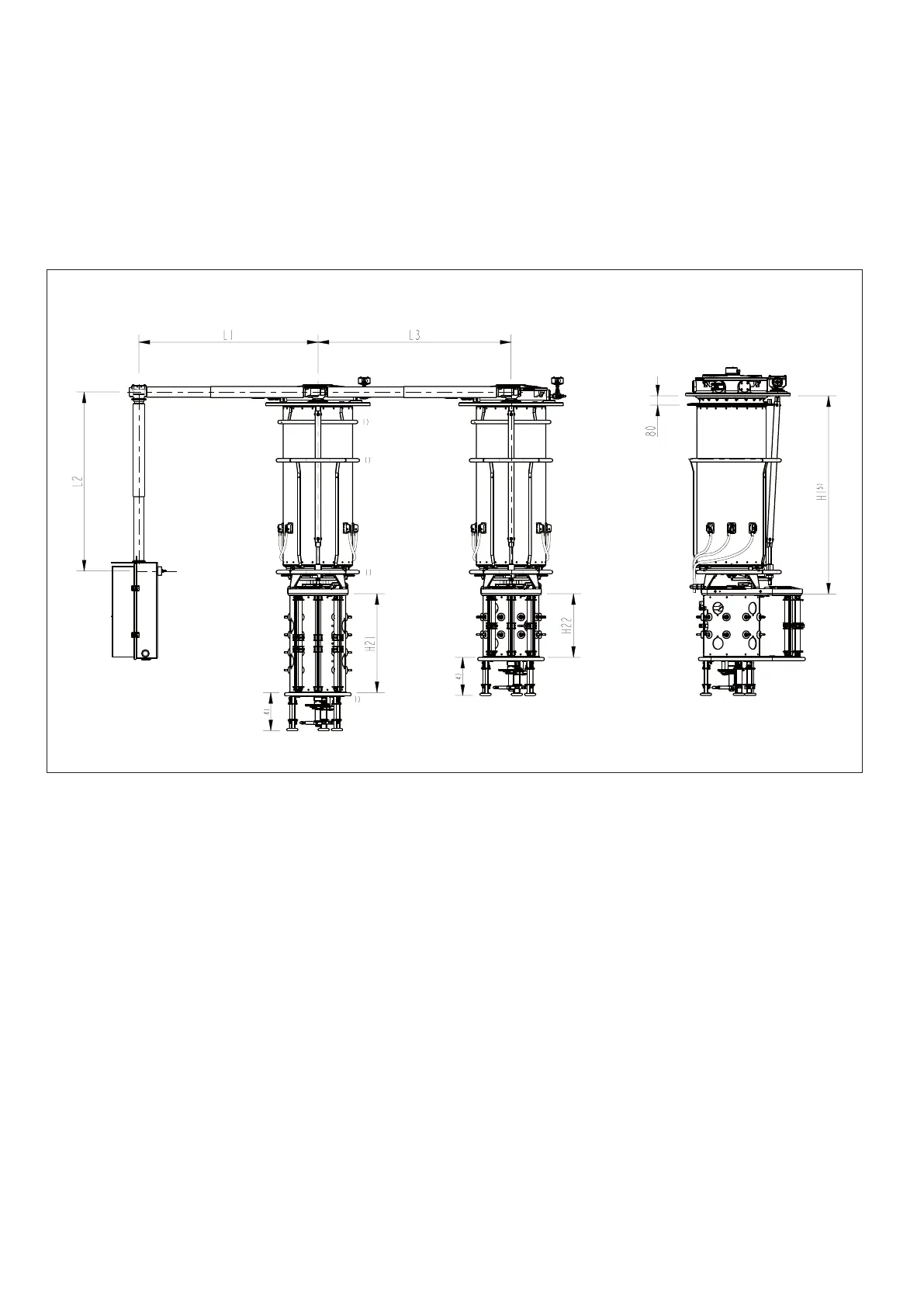

Fig. 55. Dimensions, type VUCL.B with tap selector III and with tie-in resistor switch.
Design for premounting
on the active part of the
transformer
Type VUCL.B with tap selector III and with tie-in resistor switch
