ABB VUCG.N - Type VUCL.E and VUCL.N with Tap Selector F and with Tie-In Resistor Switch

1ZSC000562-AAX en, Rev. 1 | Technical guide VUC 41

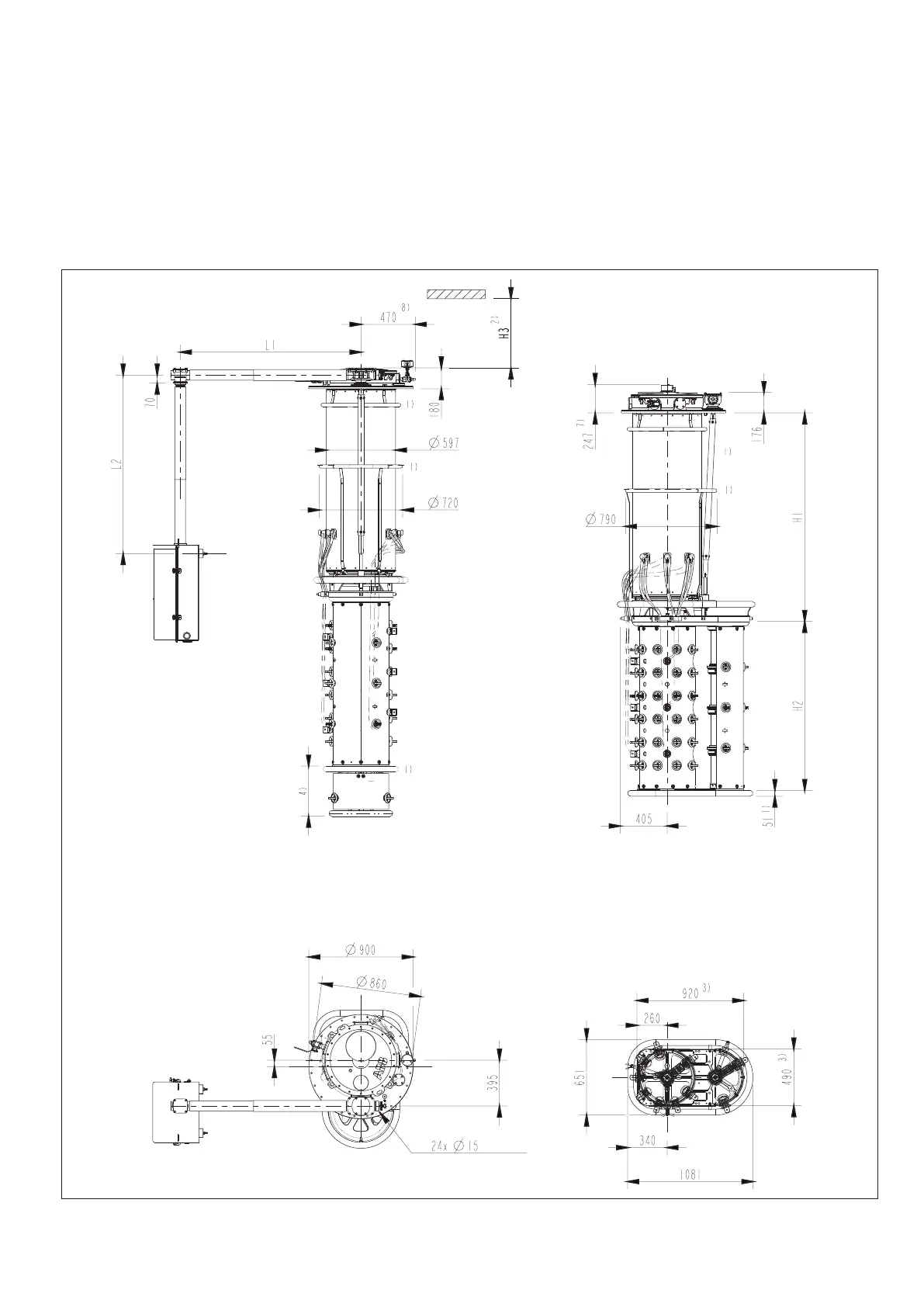

Fig. 56. Dimensions, type VUCL.E and VUCL.N with tap selector F and with tie-in resistor switch.
Section A – A
Plus/Minus and
Coarse/Fine
switching
Type VUCL.E and VUCL.N with tap selector F and with tie-in resistor switch
