1ZSC000562-AAX en, Rev. 1 | Technical guide VUC 49

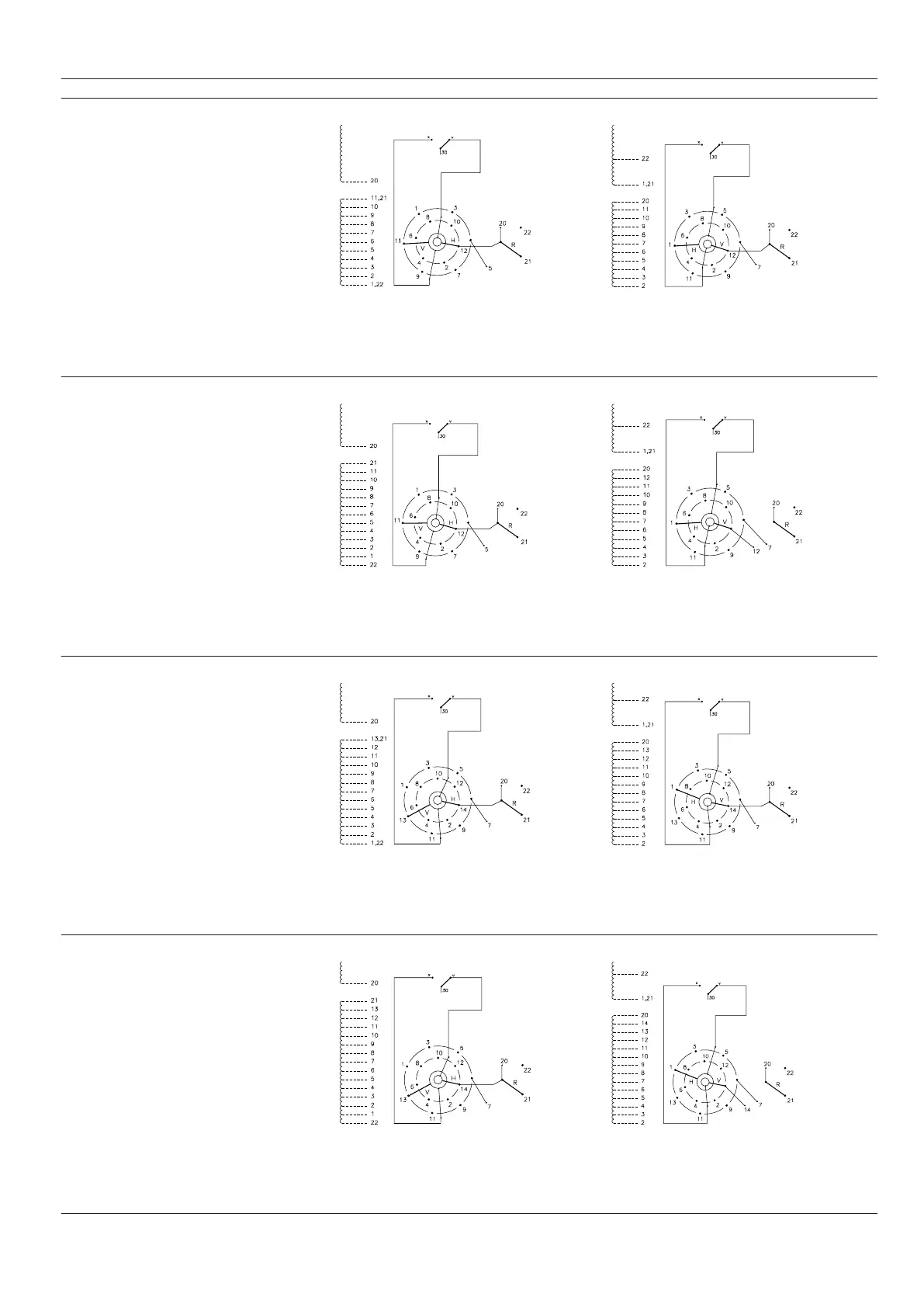

Appendix 1: Single-phase diagrams for VUCG/C
Linear Plus/Minus Coarse/Fine
20 steps
Number of loops:
10 10 + 10
Number of tap positions:
21 21
22 steps
Number of loops:
12 11 + 12
Number of tap positions:
23 23
24 steps
Number of loops:
12 12 + 12
Number of tap positions:
25 25
26 steps
Number of loops:
14 13 + 14
Number of tap positions:
27 27
