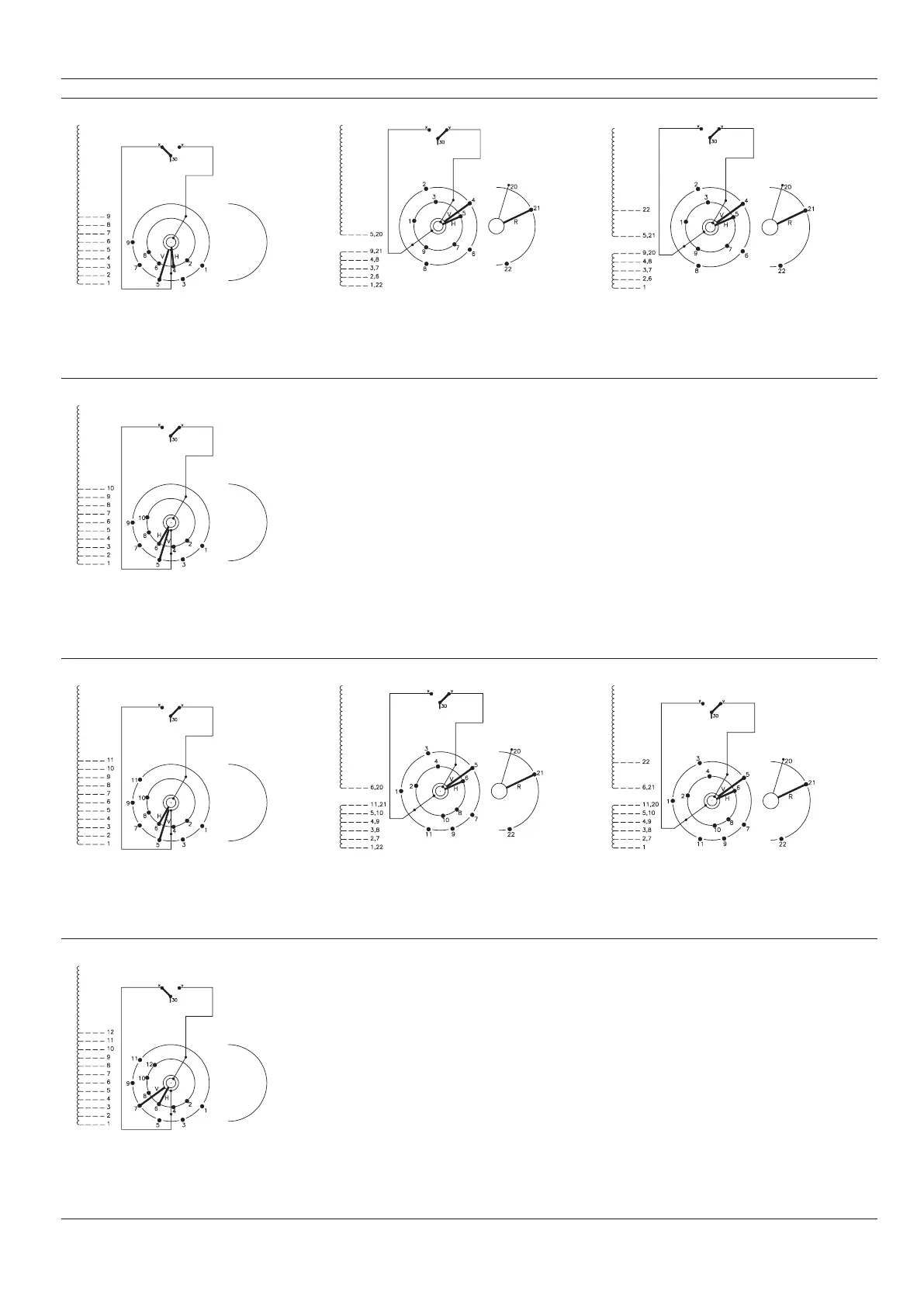

Appendix 3: Single-phase diagrams for VUCG/F and VUCL/F
Linear Plus/Minus Coarse/Fine
8 steps
Number of loops:
8 4 4 + 4
Number of tap positions:
9 9 9
9 steps
Number of loops:
9
Number of tap positions:
10
10 steps
Number of loops:
10 5 5 + 5
Number of tap positions:
11 11 11
11 steps
Number of loops:
11
Number of tap positions:
12
