ABEM Terrameter LS Toolbox
29

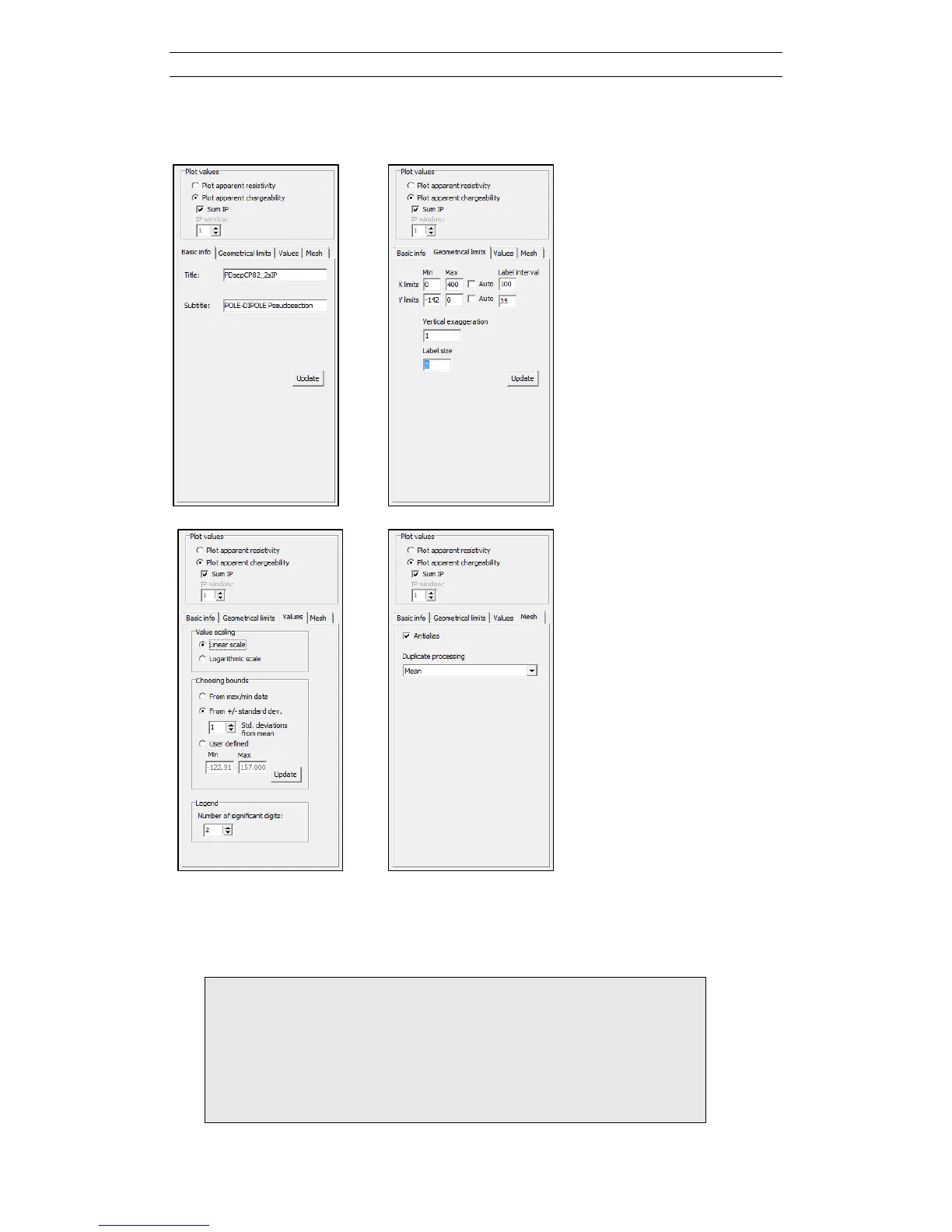

There are four tabs for setup of pseudo section plot options (Figure 43).
Figure 43. Plot option tabs for pseudosection view.
Note! The software Erigraph is recommended for
pseudosection plotting for reports and presentations. It is
also useful for plotting inverted model sections from
Res2dinv, in order to make consistent presentations in
cases with more than one section from a site. Inverted
models should be exported in Lund-format. Erigraph can
be downloaded from www.guidelinegeo.com .
