2-4 Chapter 2

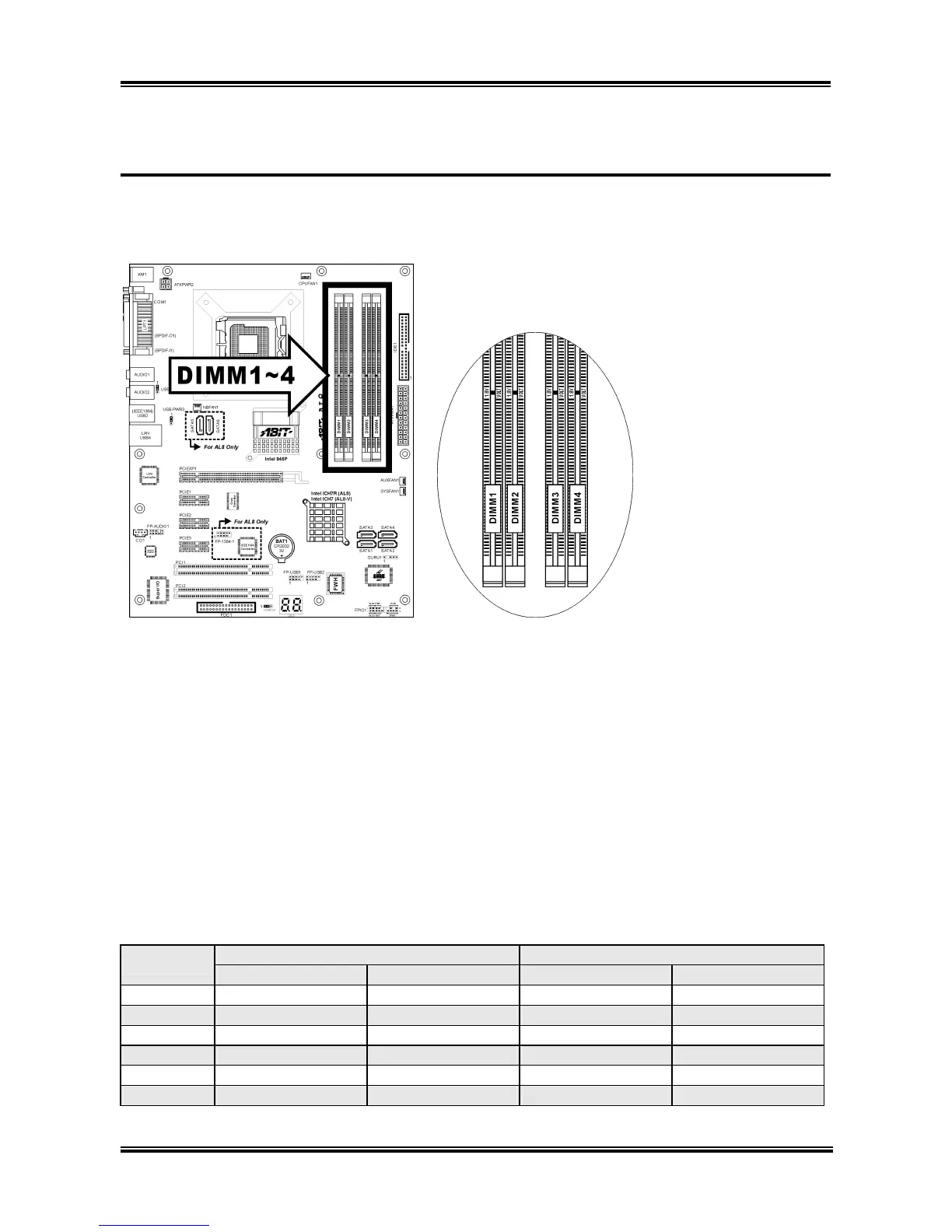

2-3. Install System Memory
The Intel 945P Express Chipset MCH memory interface is designed with Flex Memory Technology
supporting single-channel or dual-channel DDR2 memory configurations.
• To reach the optimum performance in dual-channel configurations, install identical DDR2 DIMM
pairs for each channel.
• Install DIMMs with the same CAS latency. To reach the optimum compatibility, obtain memory
modules from the same vendor.
• Due to chipset resource allocation, the system may detect less than 4GB of system memory in the
installation of four 1GB DDR2 memory modules.
• Due to chipset limitation, 128MB DIMM modules or double-sided x16 memory chips are not
supported.
There are several methods of different DDR2 configurations depending on how the DIMMs are populated
on each system memory channel:
• [Single Channel]: only one channel is populated.
Channel A Channel B
Method
DIMM1 DIMM2 DIMM3 DIMM4
1 512MB - - -
2 - 512MB - -
3 - - 512MB -
4 - - - 512MB
5 512MB 512MB - -
6 - - 512MB 512MB
AL8 Series
