Hardware Setup 2-19

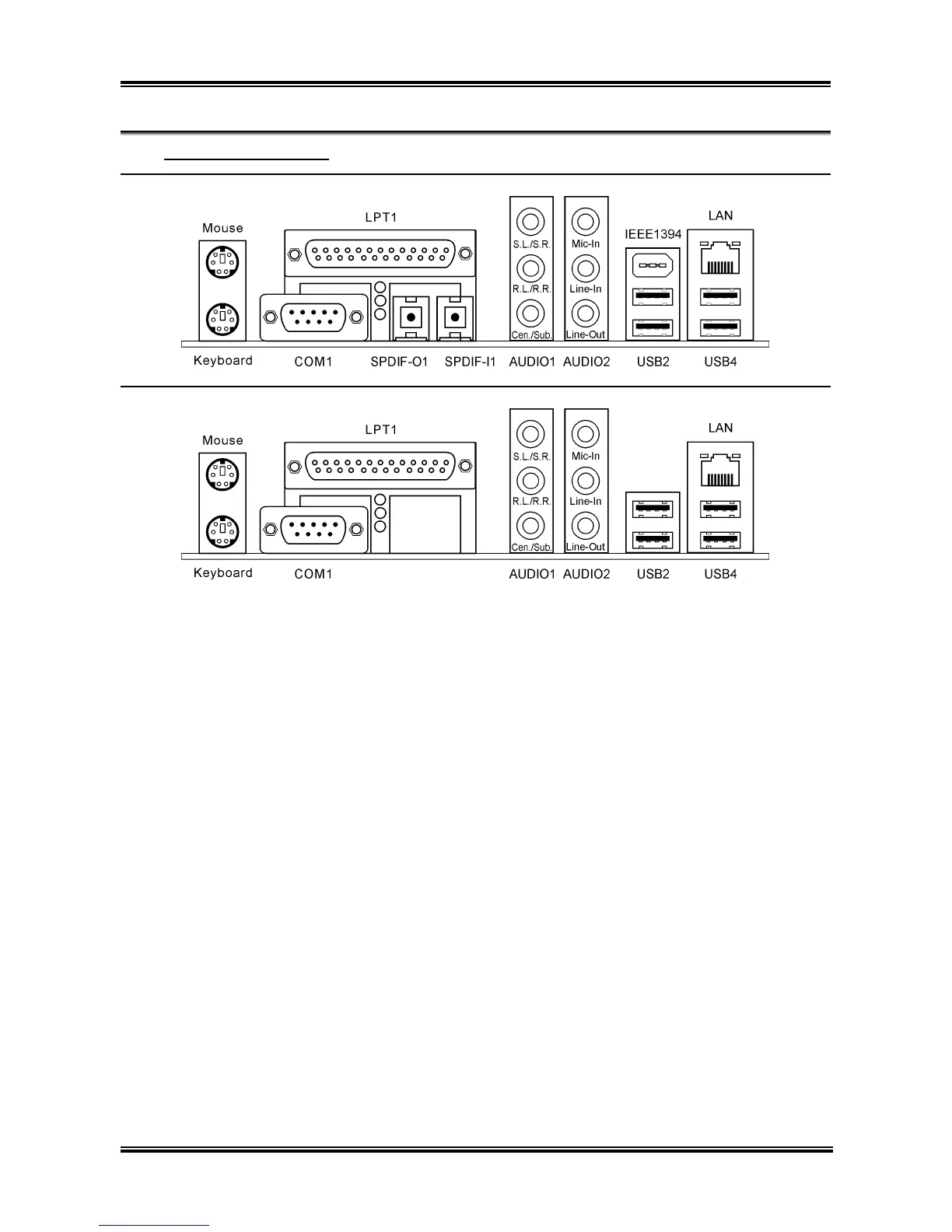

(16). Back Panel Connectors
AL8:
AL8-V:
• Mouse: Connects to PS/2 mouse.
• Keyboard: Connects to PS/2 keyboard.
• LPT1: Connects to printer or other devices that support this communication protocol.
• COM1: Connects to external modem, mouse or other devices that support this communication
protocol.
• SPDIF-O1: This connector provides an S/PDIF-Out connection through optical fiber to digital
multimedia devices. (For model AL8 only)
• SPDIF-I1: This connector provides an S/PDIF-In connection through optical fiber to digital
multimedia devices. (For model AL8 only)
• AUDIO1:
S.L./S.R. (Surround Left/Surround Right): Connects to the surround left and surround right
channel in the 7.1-channel audio system.
R.L./R.R. (Rear Left/Rear Right): Connects to the rear left and rear right channel in the
7.1-channel audio system.
Cen./Sub. (Center/Subwoofer): Connects to the center and subwoofer channel in the 7.1-channel
audio system.
• AUDIO2:
Mic-In: Connects to the plug from external microphone.
Line-In: Connects to the line out from external audio sources.
Line-Out: Connects to the front left and front right channel in the 7.1-channel or regular 2-channel
audio system.
• IEEE1394: Connects to devices of IEEE1394 protocol. (For model AL8 only)
• LAN: Connects to Local Area Network.
• USB2/USB4: Connects to USB devices such as scanner, digital speakers, monitor, mouse,
keyboard, hub, digital camera, joystick etc.
