Abit AL8 User Manual

3-2 Chapter 3
3-1. µGuru Utility

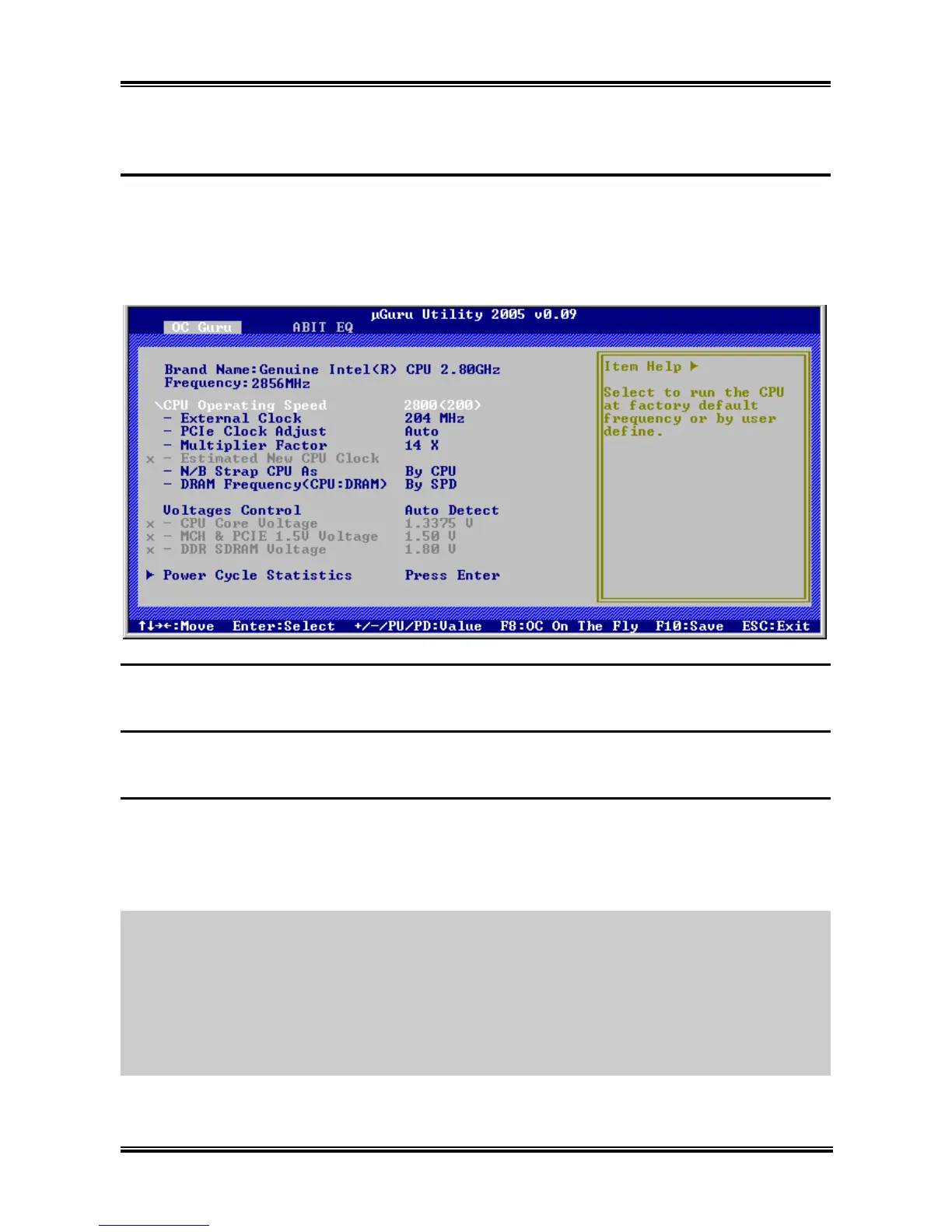

There are two setup menus in this µGuru utility. You may switch between these two by clicking the left
or right arrow key on keyboard:
OC Guru:
Brand Name:
This item displays the CPU model name installed on this motherboard.
Frequency:
This item displays the processor speed of the CPU installed on this motherboard.
CPU Operating Speed:
This item displays the CPU operating speed according to the type and speed of your CPU. You can also
select the [User Define] option to enter the manual option.
User Define:
WARNING: The wrong settings of the multiplier and external clock in certain circumstances may cause
CPU damage. Setting the working frequency higher than the PCI chipset or processor specs, may cause
abnormal memory module functioning, system hangs, hard disk drive data lose, abnormal functioning of
the VGA card, or abnormal functioning with other add-on cards. Using non-specification settings for your
CPU is not the intention of this explanation. These should be used for engineering testing, not for normal
applications.
There will be no guaranty for the settings beyond specification, any damage of any component on this
motherboard or peripherals result therein is not our responsibility.
AL8 Series

Abit AL8 Specifications

General

Form Factor	ATX
Socket Type	LGA 775
Chipset	Intel 945P
Memory Slots	4
Maximum Memory	4 GB
Expansion Slots	1 x PCIe x16, 3 x PCIe x1, 3 x PCI
Audio	Realtek ALC880 8-Channel High Definition Audio CODEC
Memory Type	DDR2
IDE	1 x IDE
SATA	4 x SATA 3Gb/s
PCI Slots	3
PCIe x16 Slots	1
PCIe x1 Slots	2
LAN	10/100/1000 Mbps
Storage Interface	4 x SATA 3Gb/s, 1 x IDE
USB Ports	8
Supported CPU	Intel Pentium 4, Pentium D
Front Side Bus	800 MHz
Storage Interfaces	4 x SATA 3Gb/s, 1 x IDE
