2-12 Chapter 2
(7). Additional IEEE1394 Port Headers

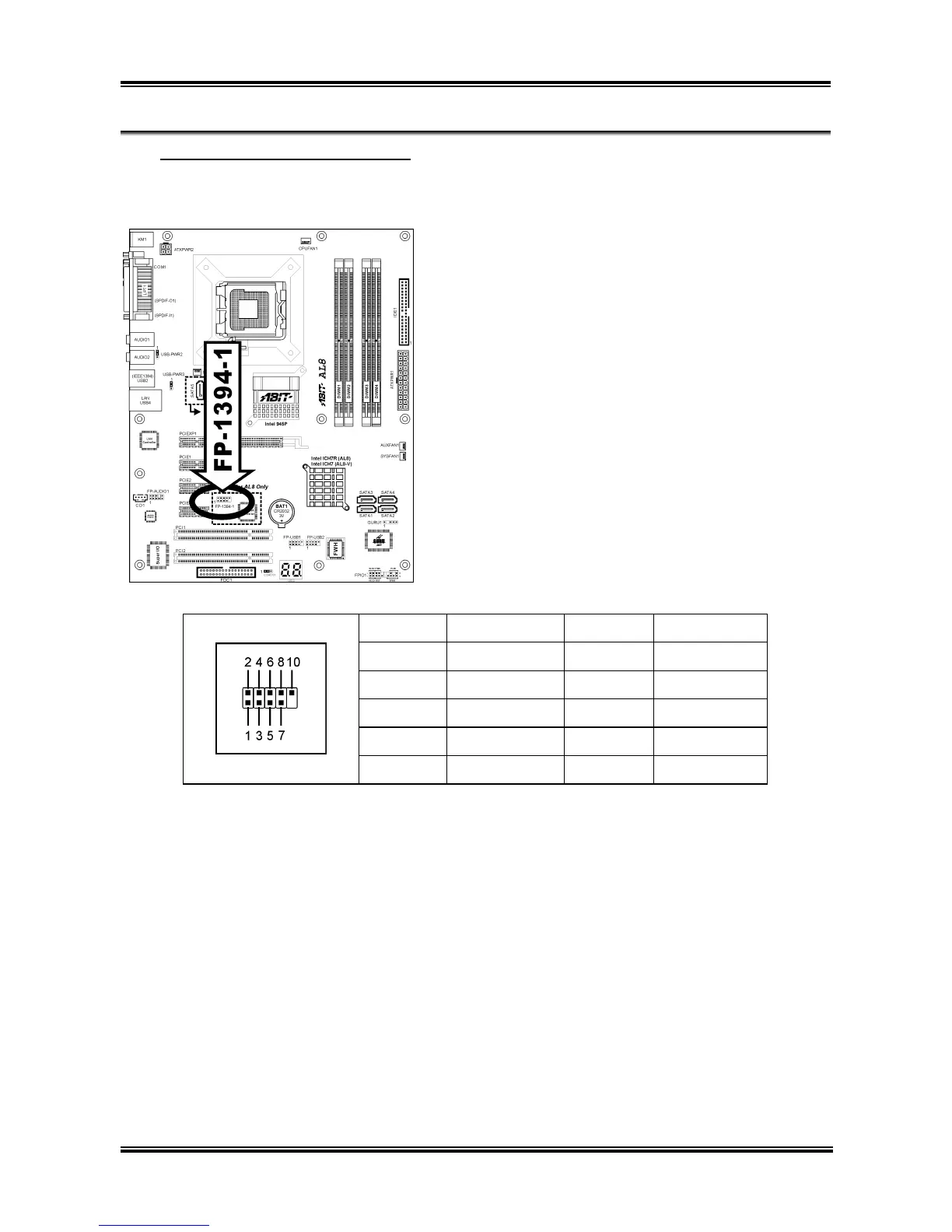

This header provides one additional IEEE1394 port connection through an extension cable and bracket.
Pin Pin Assignment Pin Pin Assignment
1 TPA0 + 2 TPA0 -
3 Ground 4 Ground
5 TPB0 + 6 TPB0 -
7 +12V 8 +12V
9 NC 10 Ground
