PREPARATIONS, INSTALLATION AND TAKING INTO OPERATION
11
2. The mounting plate has pre-molded
cable inlets for the power supply on
its upper edge as well in the middle
of its surface. According to the power
supply at the installation site (and as
required), please remove one of the
plastic tongues intended for the pow-
er supply cable with a suitable pair of
pliers, a cutter or drill.
83

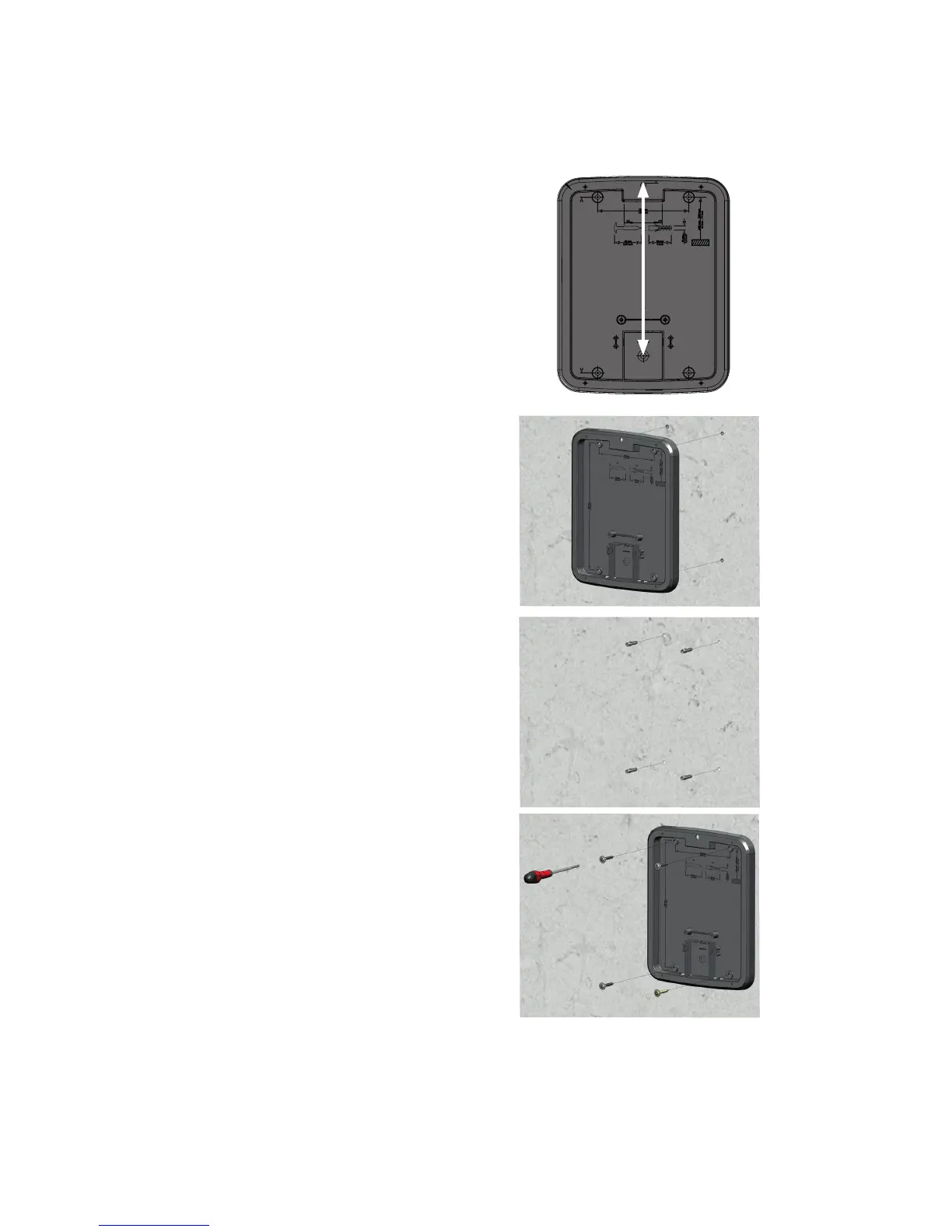

3. Place the mounting plate on the cho-
sen mounting surface: Use a spirit
level if required. Mark the drill holes.
4. Drill the mounting holes as marked (Ø
10mm). Insert the supplied wall plugs
for the mounting screws if required.
5. Fix the mounting plate in position with
a screwdriver (TX40 bit) and the wafer
head screws (8 x 60) included.
PLEASE NOTE: In case the power sup-
ply enters from the rear, you must first
thread the cable through the opening
in the connection area in the lower
third of the mounting plate before
screwing the plate into position.
