ABL eMH3 Installation Manual

PREPARATIONS, INSTALLATION AND TAKING INTO OPERATION
14

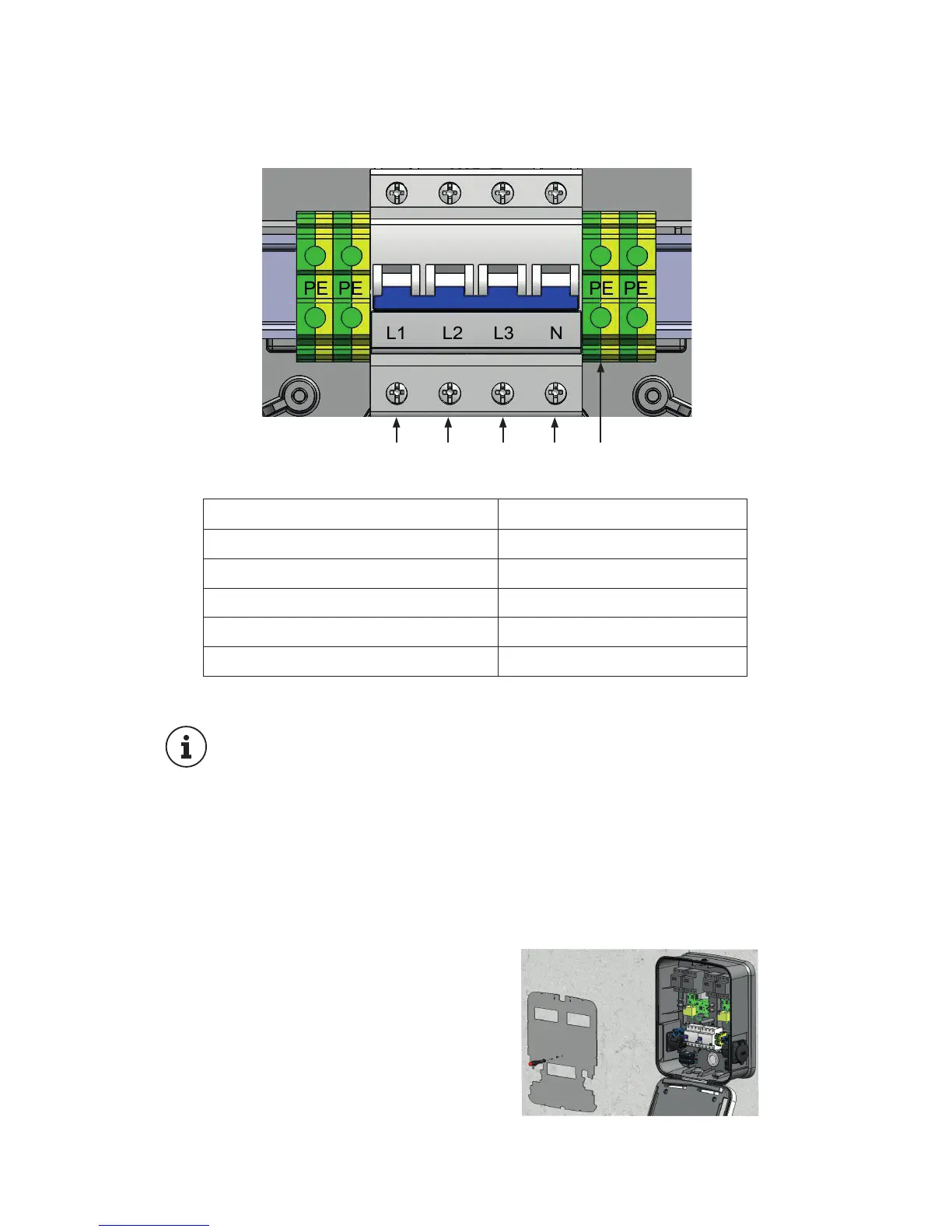

The supply cable for the 3W22A2 model variant is connected as follows:
DESIGNATION CONNECTION CODING
Current-carrying conductor phase 1 L1
Current-carrying conductor phase 2 L2
Current-carrying conductor phase 3 L3
Neutral N
Protective earth PE
PLEASE NOTE!
The 3W14A1 and 3W14A2 model variants are preset for a charging cur-
rent of 15 A per charge point by the factory. The 3W22A2 model variant
is preset to 30 A when using one charge point. When using both charge
points at the same time, the charging current is limited to 15 A per charge
point. Should your domestic power supply provide a lower or higher
charging current, the preset current for the wallbox must be reset ac-
cordingly: To do so, please contact your local ABL partner.
Please note that the rated current indicated on the product label must un-
der no circumstances be exceeded.
13. Replace the electronic components
cover inside the housing and fix it with
its torx screw (TX20 bit).
L1 L2 L3 N PE

ABL eMH3 Specifications

General

Category	Battery Charger
Connector Type	Type 2
Number of Charging Points	1
Protection Rating	IP54
Charging Current	32 A
Input Voltage	400 V AC
Protection Class	I
Output Voltage	400 V AC
Output Current	32 A
Operating Temperature	-25°C to +50°C
Cooling Method	Natural Convection
Model	eMH3
Protection Features	Overcurrent protection, overvoltage protection, short circuit protection
Charging Power	up to 22 kW
