4 Connection of Handler
The E-PGM+ / E-GANG4/6 / E-PGAM Serial are designed to maximize the efficiency of device
programming when they are connected with handlers - an automated mass-production machine.
The connected handler receives the Enter button signal and communication signals (DSDA, DSCL)
required for device programming from the E-PGM+ / E-GANG4/6 / E-PGAM Serial. This ensures
that signals from a single unit of the E-PGM+ / E-GANG4/6 / E-PGAM Serial are delivered to
multiple devices configured in parallel on the handler and thus all those devices are programmed
simultaneously.
The hardware description for the handler connection is provided in the following sections.
4.1 E-PGM+ / E-PGM Serial Handler Connections
The software and firmware for the E-PGM+, E-GANG4/6, and E-PGM Serial are available for
download from ABOV’s website (www.abovsemi.com).

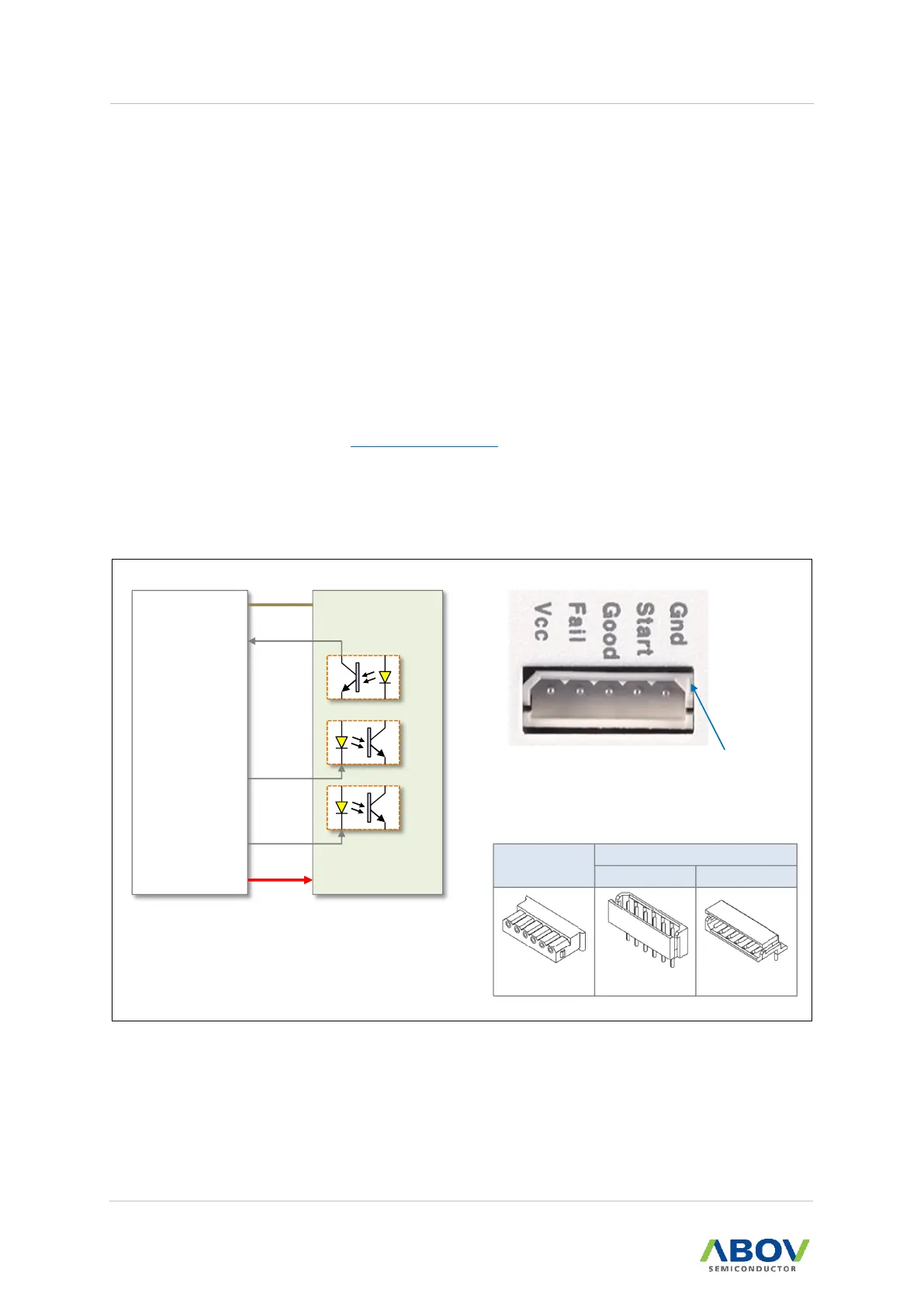

 VCC: 3.3V power output from the E-PGM+ / E-PGM Serial Programmer
 START: Input pin, active low
 GOOD/FAIL: Output pin, active low, indicate signals
E-PGM+ /
E-PGM Serial
Programmer
START
GOOD
FAIL
VCC
GND
Handler
1
2
3
4
5
Common
#1 Marking
12345
Handler Cable Connector
MOLEX Part Number: 50-37-5023 (SD-5264-05)
2.50mm Pitch SPOX™ Wire-to-Board Crimp Housing,
Friction Lock, 2 Circuits
5264 5267/35301 5268/35302
Vertical Right Angle
Housing
Header
(+3.3V)
Figure 46. E-PGM+ Handler Connections
