E-PGM+ / E-GANG4/6 / E-PGM Serial User’s Manual 2. Hardware

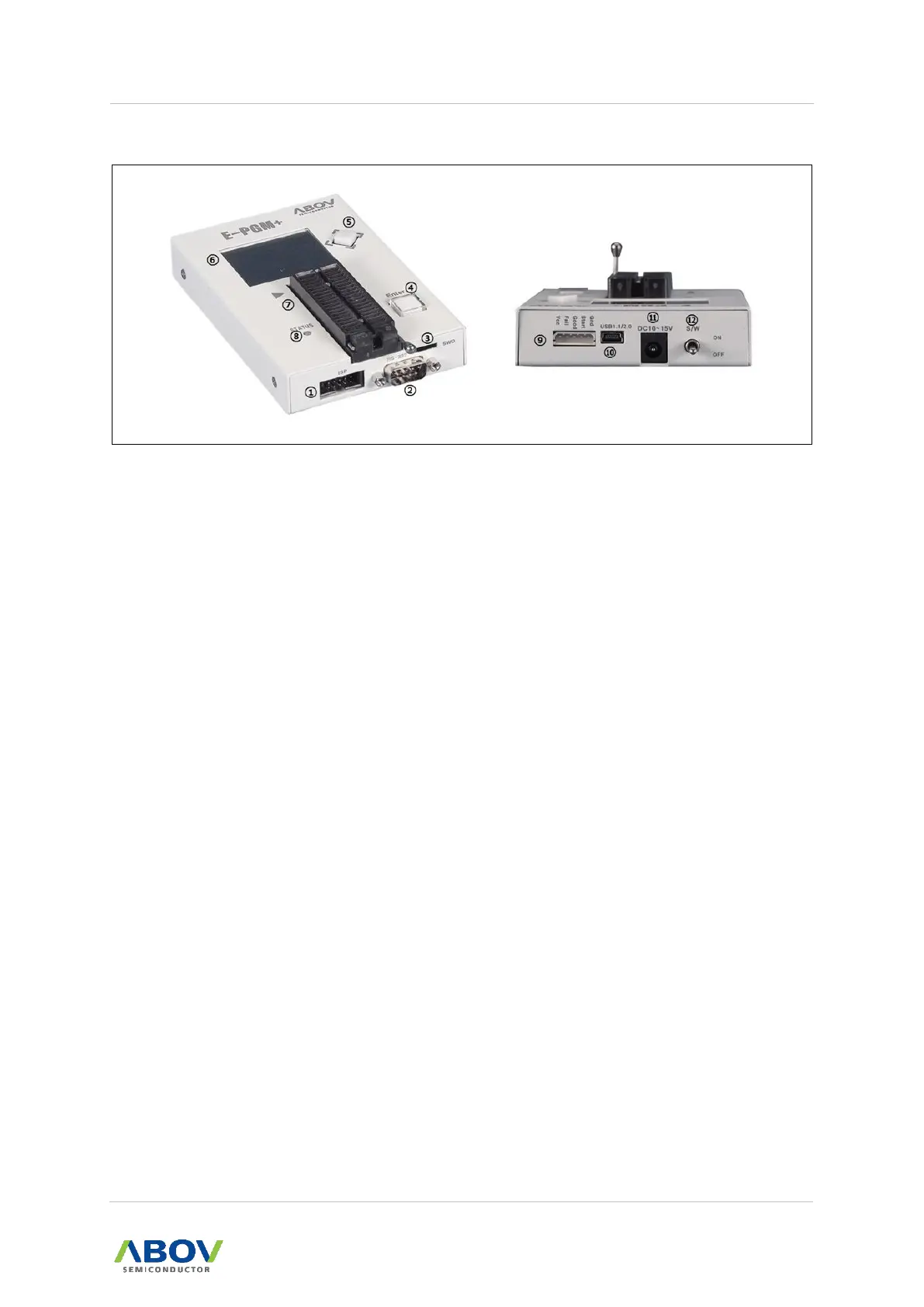

Figure 3 and the following list describe external features of the E-PGM+:

Figure 3. E-PGM+ Top and Side Views for Function Description

① 10-pin IDC connector for In-System Programming (ISP)

② RS-232C serial communication port (External bar code reader interface port)

③ SWD port for firmware update and development purpose (Do not use, it is not for

customers.)

④ A button for programming the target device

⑤ A button for reading the target device

⑥ LCD Screen for Information Display:

— Device name, checksum data and options.

— PASS/FAIL is shown as a result of programming, accompanied by error information

in the case of failure.

⑦ 40-pin DIP TEXTOOL Socket for single chip programming mode.

⑧ LED Indicator with red/green illumination shows the current status when writing is

complete:

— Red for FAIL

— Green for PASS

⑨ 5-pin Molex 5264 connector for the interface with a Handler equipment

⑩ USB mini-B connector to a PC

⑪ Power Adaptor Connector for the 15V/1A external power

⑫ System Power Switch
