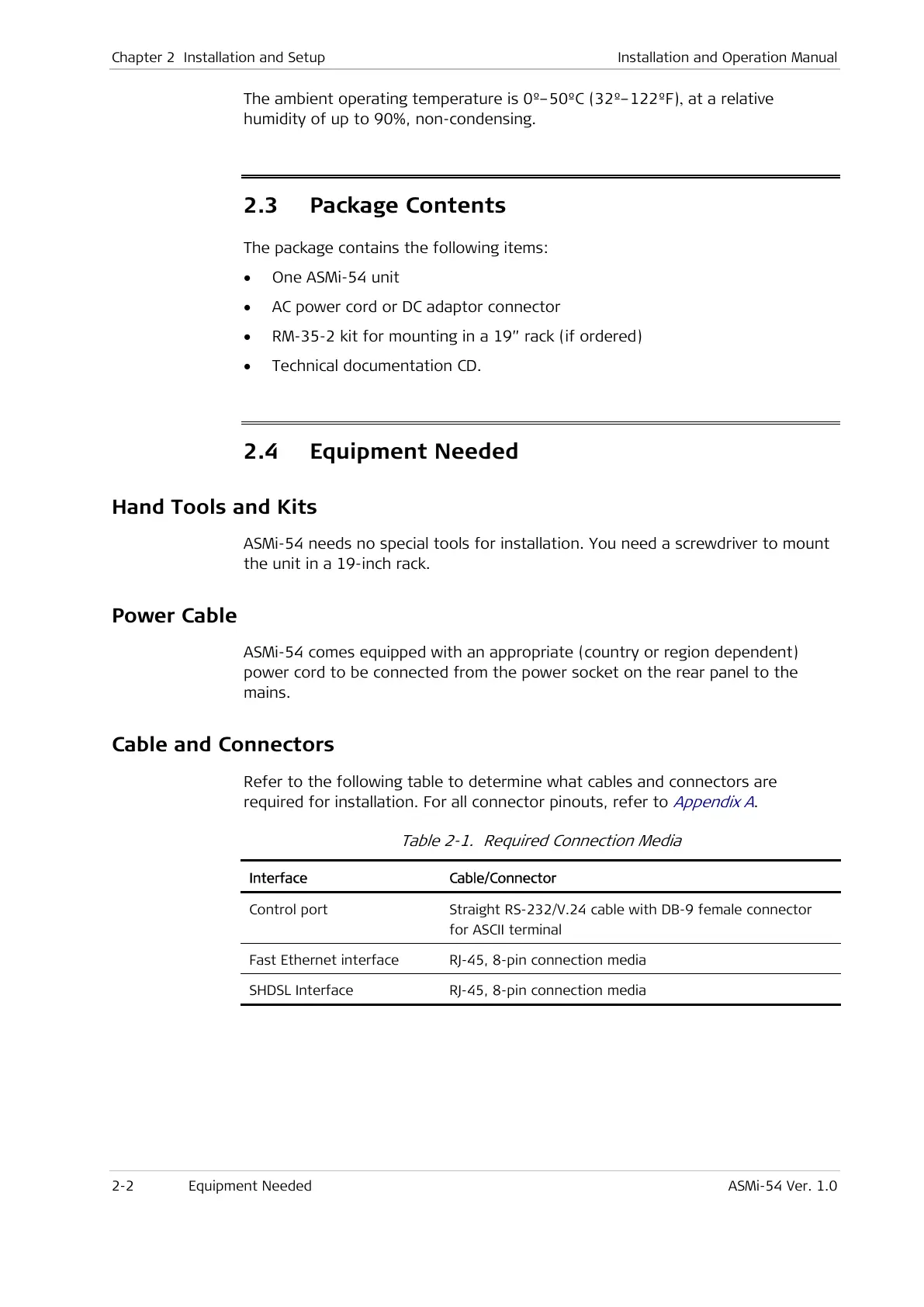

Chapter 2 Installation and Setup Installation and Operation Manual
2-2 Equipment Needed ASMi-54 Ver. 1.0
The ambient operating temperature is 0º–50ºC (32º–122ºF), at a relative
humidity of up to 90%, non-condensing.
2.3 Package Contents
The package contains the following items:
• One ASMi-54 unit
• AC power cord or DC adaptor connector
• RM-35-2 kit for mounting in a 19” rack (if ordered)
• Technical documentation CD.
2.4 Equipment Needed
Hand Tools and Kits
ASMi-54 needs no special tools for installation. You need a screwdriver to mount
the unit in a 19-inch rack.
Power Cable
ASMi-54 comes equipped with an appropriate (country or region dependent)
power cord to be connected from the power socket on the rear panel to the
mains.
Cable and Connectors
Refer to the following table to determine what cables and connectors are
required for installation. For all connector pinouts, refer to
Appendix A
.
Table 2-1. Required Connection Media
Interface Cable/Connector
Control port Straight RS-232/V.24 cable with DB-9 female connector
for ASCII terminal
Fast Ethernet interface RJ-45, 8-pin connection media
SHDSL Interface RJ-45, 8-pin connection media
