Chapter 1: The LC1400 System1-10

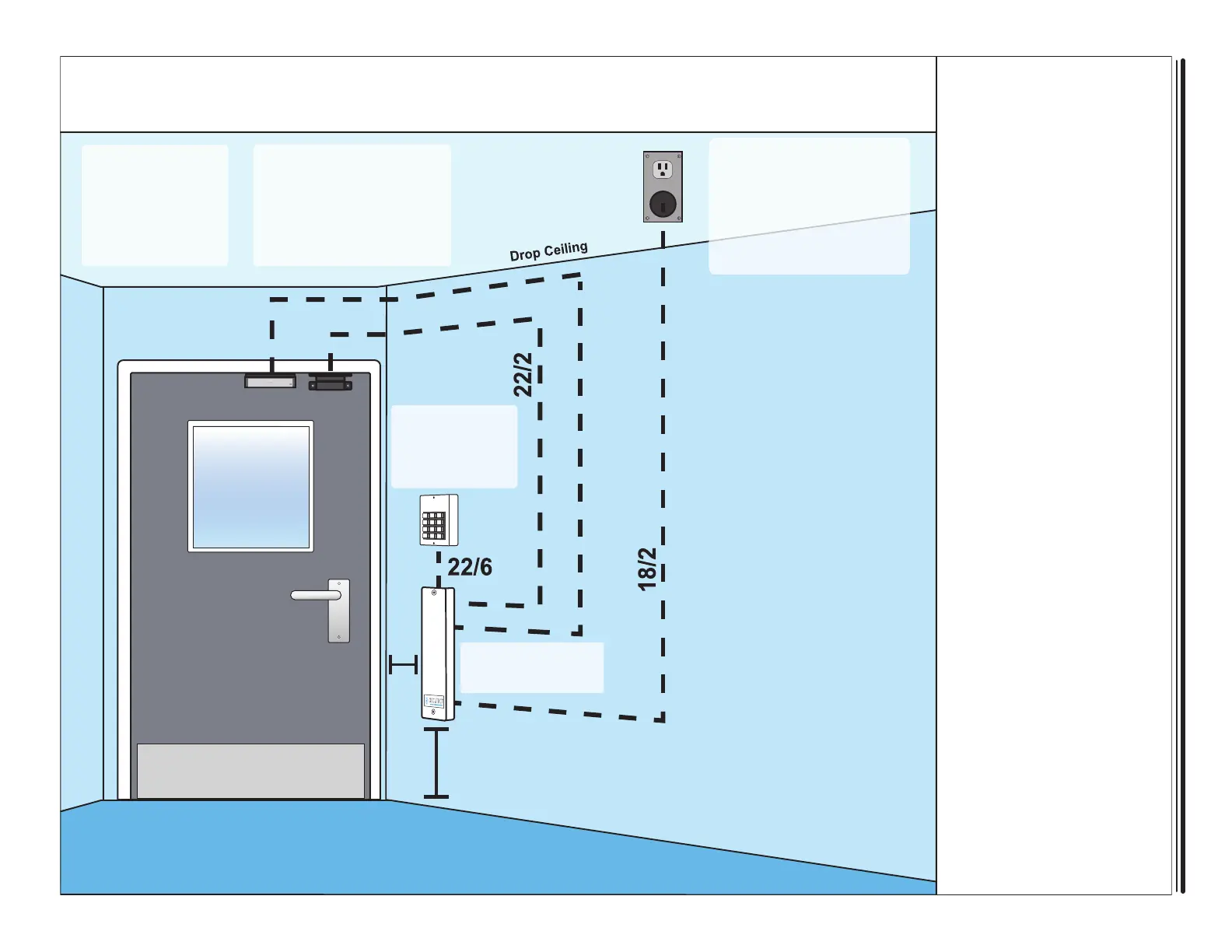

Typical LC1400 Configuration - Single Door
Note: If a patient room is behind latch-side wall, mount on hinge-side wall instead.
~2’
from
floor
Min
3”
from
frame
KP103
Keypad
Part #650209
15VDC/2A
Plug-in Power
Supply
Part #500224
Magnetic Door
Position
Switch
Part #650514
LC1400T
Part #662022
Optional
Magnetic
Door Lock
Part #700228
18/6
Accutech
Important:
15VDC/2A Plug-in Power
Supply
(Part #500224):
•Installed above drop ceiling
Magnetic Door Position
Switch
(Part #650514)
•Position on latch side of
top of door
LC1400T
•Not designed for ceilng
mount.
•Position at least 3” away
from any metal.
•Recommended distance
from door: 3” - 6” (Max. 18”)
LCT Single Door Kit
(Part #800126):
•LC1400T (1)
•Keypad (1)
•Magnetic Switch (1)
•Cable Kit (1)
•15VDC/2A Power Supply (1)
To Next Page
