Accutech LC1400 User Manual

Chapter 2: The LC1400T 2-6
.Bleed Through/ Adjacent Patient
Rooms
The position of the antenna will vary if patient
rooms are adjacent to the zones. If a patient
room is behind the wall on one side of an
egress zone, position the antenna on the wall
on the other side of the zone, where there is no
patient room.
If there are patient rooms on both sides of
an egress zone, Y-shield paint and grounding
straps must be utilized. Use figure 2.3 and the
following order of installation:
Y-Shield order of installation:
1) Install GSX50 grounding straps
2) NSF34 Y-Shield paint on 10’x10’ area
3) Install GS3 grounding plate (do not paint
grounding plate)
4) Ground GS3 to earth ground
5) Plaster over straps, as needed
6) Paint or wallpaper
7) Install LC1400T
Accutech
Accutech
Patient
Room
OR
OR OR
Min 1’
Min 1’
Min 1’
Min 1’
Min 1’
Min 1’
Min 1’
Patient
Room
NSF34 Y-Shield Paint
Grounding
Plate GS3
16 gauge wire to
earth ground
GSX50
Grounding
Straps
Patient
Room
Patient room on one side of a Door
Patient room on both sides of an exit
Patient room one one side of a Hallway
Patient
Room
Y-SHIELD order of installation:
1) Install GSX50 grounding straps
2) Install GS3 grounding Plate
3) Ground GS3 to earth ground
4) NSF34 Y-Shield paint 10’x10’ area
5) Plaster over straps, as needed
6) Paint or wallpaper
7) Install TX Antenna

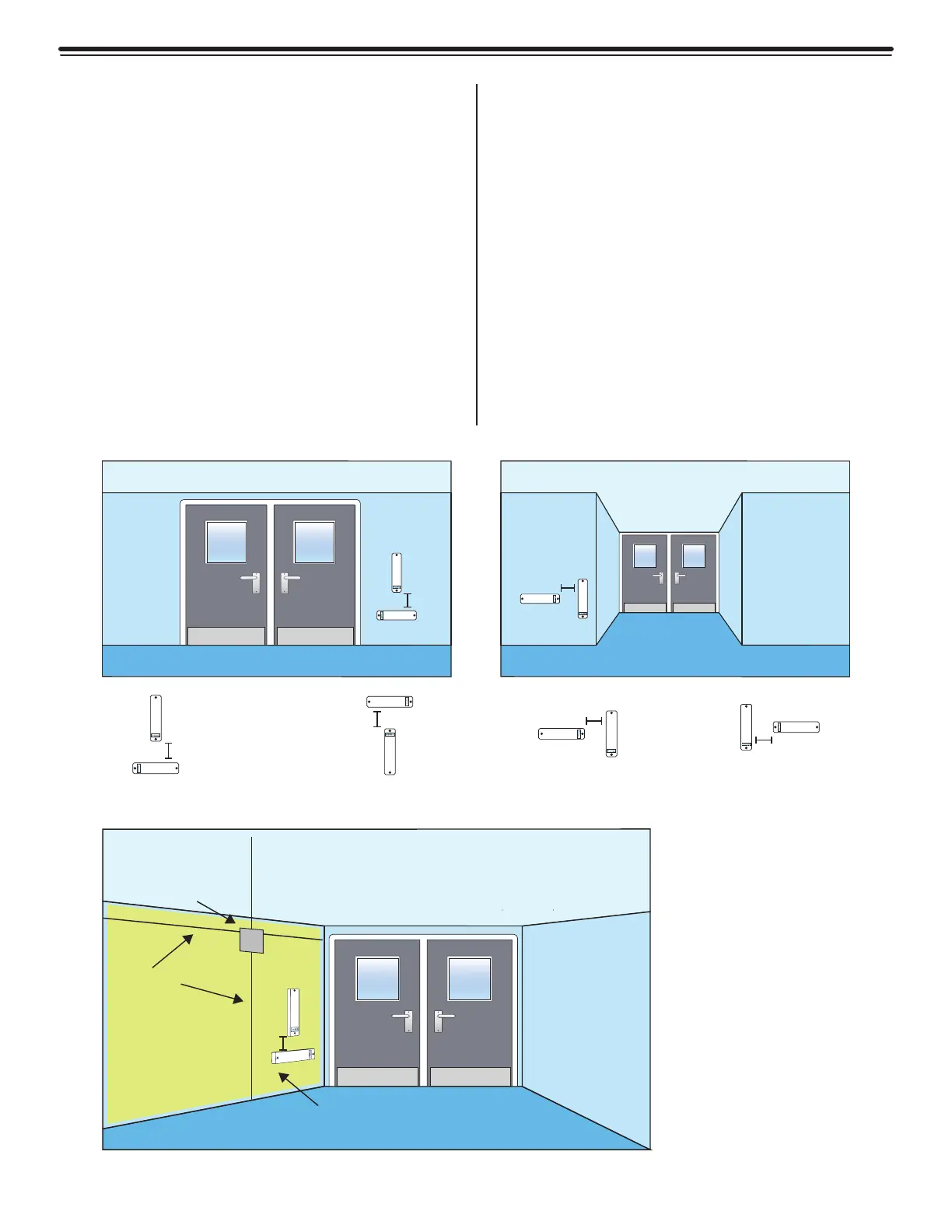

Figure 2.3 - LC1400T installation around patient rooms
