SP8026-1909
EVOLUTION ELECTRIC STEAMER
46
DOOR GASKET
1. Unplug the unit & shut the Door.
2. Remove the Hinge Covers (FIG 4.5A).
3. Remove the very bottom screw on the
door hinge-side of the Bottom Hinge &
remove the very top screw on the door-
side hinge of the Top Hinge.
4. Pull the door handle and open the door
5. Lift and pull out the Inner Door Panel.
6. Remove the 6, Gasket retaining brackets
by removing the 12 nyloc mounting nuts
holding them in place.
7. Remove the Door Gasket.
8. Re-install in reverse order. Ensure
Anti-seize is re-applied to all hinge
screws.
Gasket Retaining
Brackets

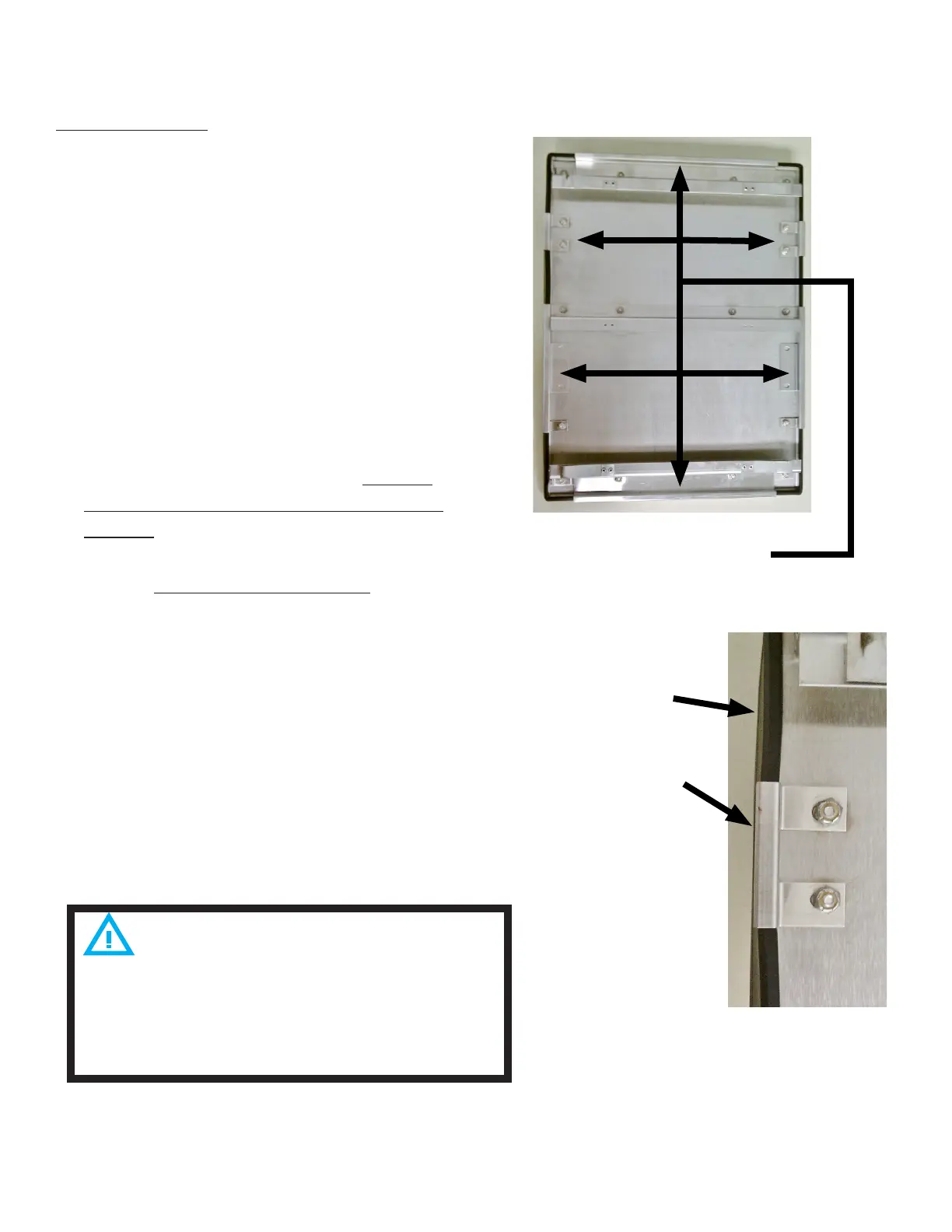

INSTALLATION NOTE:
• Make sure the new Door Gasket is
untangled.
• Starting at one corner, stretch the Gas-
ket to the opposite corner.
• Repeat this sequence until all 4 corners
are seated.
• Push the Gasket down all the way
around to ensure the Gasket seats
firmly on the inner door.
Ensure That the Inner Door is Reinstalled
with its Middle Brace Bar Behind the Door Latch
Tab FIG 4.5D.
Also, Ensure That the Screw Retainer Openings
are Lined-Up with the Door’s Hinge Side FIG
4.5E.
Gasket
Gasket Retaining
Bracket
FIG 4.5J
FIG 4.5K
