Seagate PC-3000 EXPRESS / UDMA / PORTABLE 
F3 architecture  ACE Lab
Technical support: ts@acelab.ru
Phone: +7 863 201 50 06
42 ts.acelaboratory.com

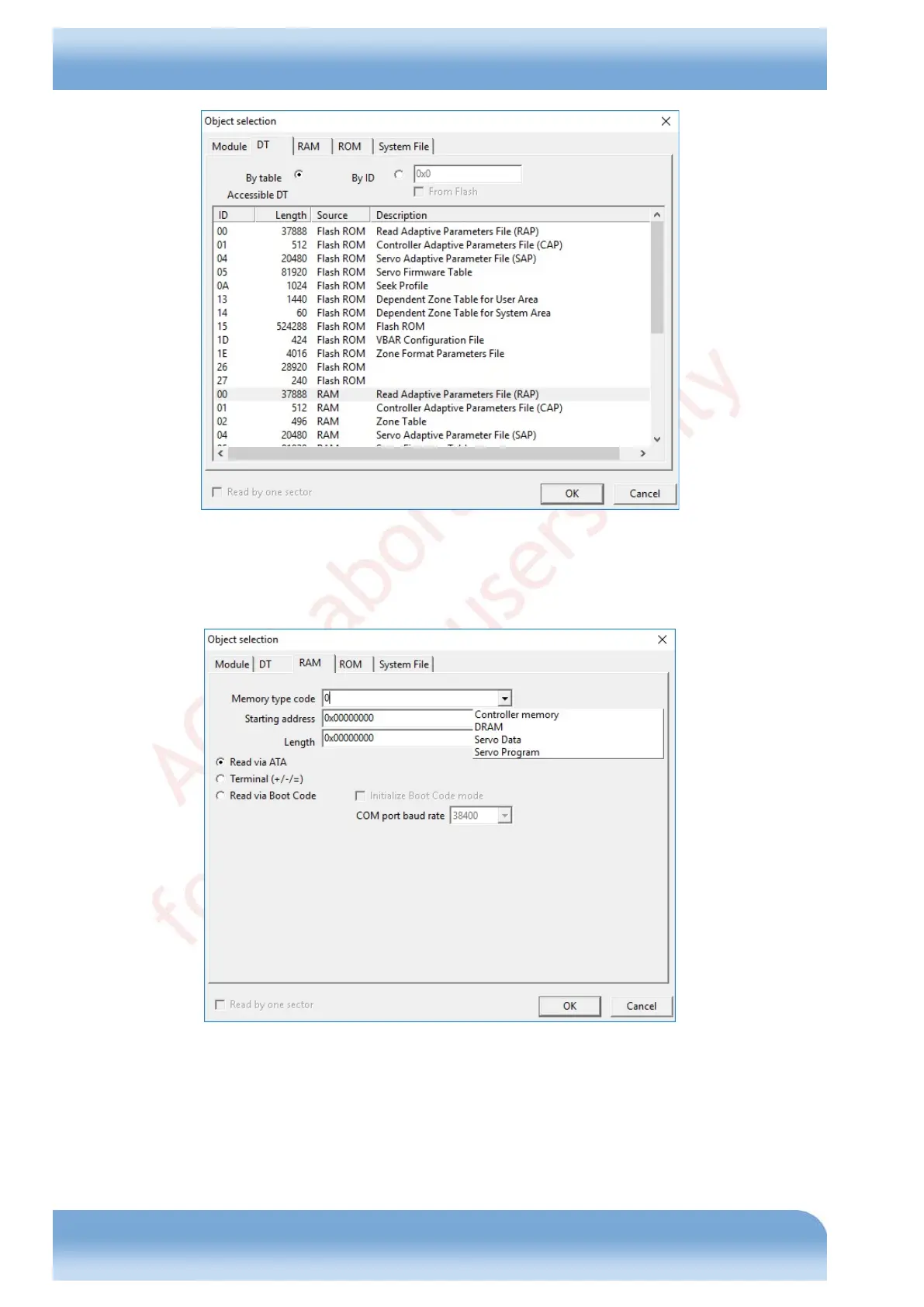

Fig. 7.3
DT can be accessed 'By table' - from the list of scanned (during start or from the utility status dialog) DT or directly by
their identifiers – 'By ID'. In the latter case you have to select additionally the DT source: ROM or RAM.
The RAM tab provides access to the objects in the random-access memory of the controller.
Fig. 7.4
The following parts of address space are distinguished at that:
♦ Controller memory (general memory)
♦ DRAM (controller memory array)
♦ Servo Data (servo program address space)
♦ Servo Program (servo program address space)
