PC-3000 EXPRESS / UDMA / PORTABLE  Seagate
 ACE Lab F3 architecture
Technical support: ts@acelab.ru
Phone: +7 863 201 50 06
ts.acelaboratory.com 67

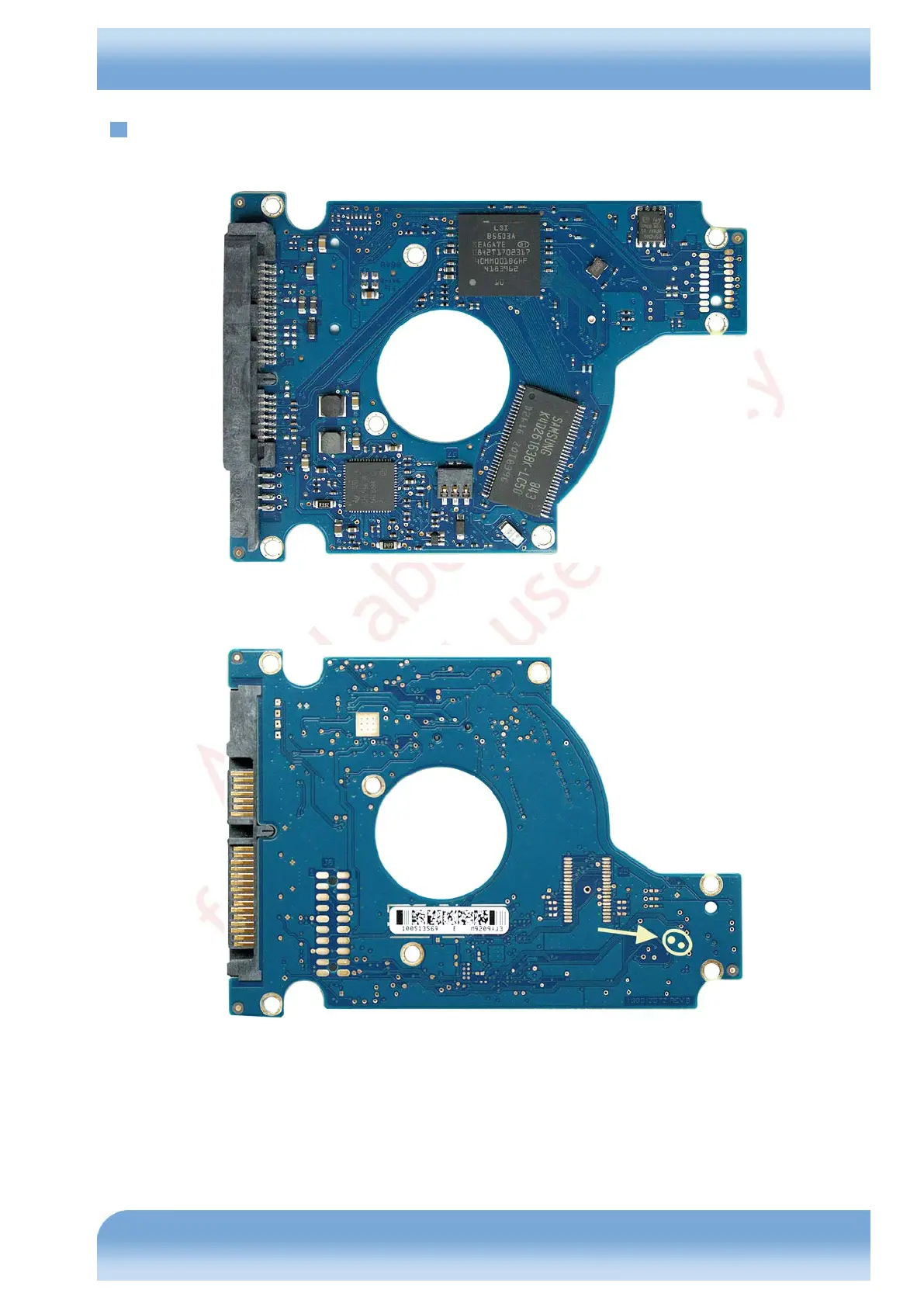

14.2. PCB 100513573 REV B
Fig. 14.3. Board view from the components side.
Fig. 14.4. Board view from the external side. Short connection points are highlighted in yellow.
