Seagate PC-3000 EXPRESS / UDMA / PORTABLE 
F3 architecture  ACE Lab
Technical support: ts@acelab.ru
Phone: +7 863 201 50 06
56 ts.acelaboratory.com
11. Appendix 3. Testing the motor winding coils

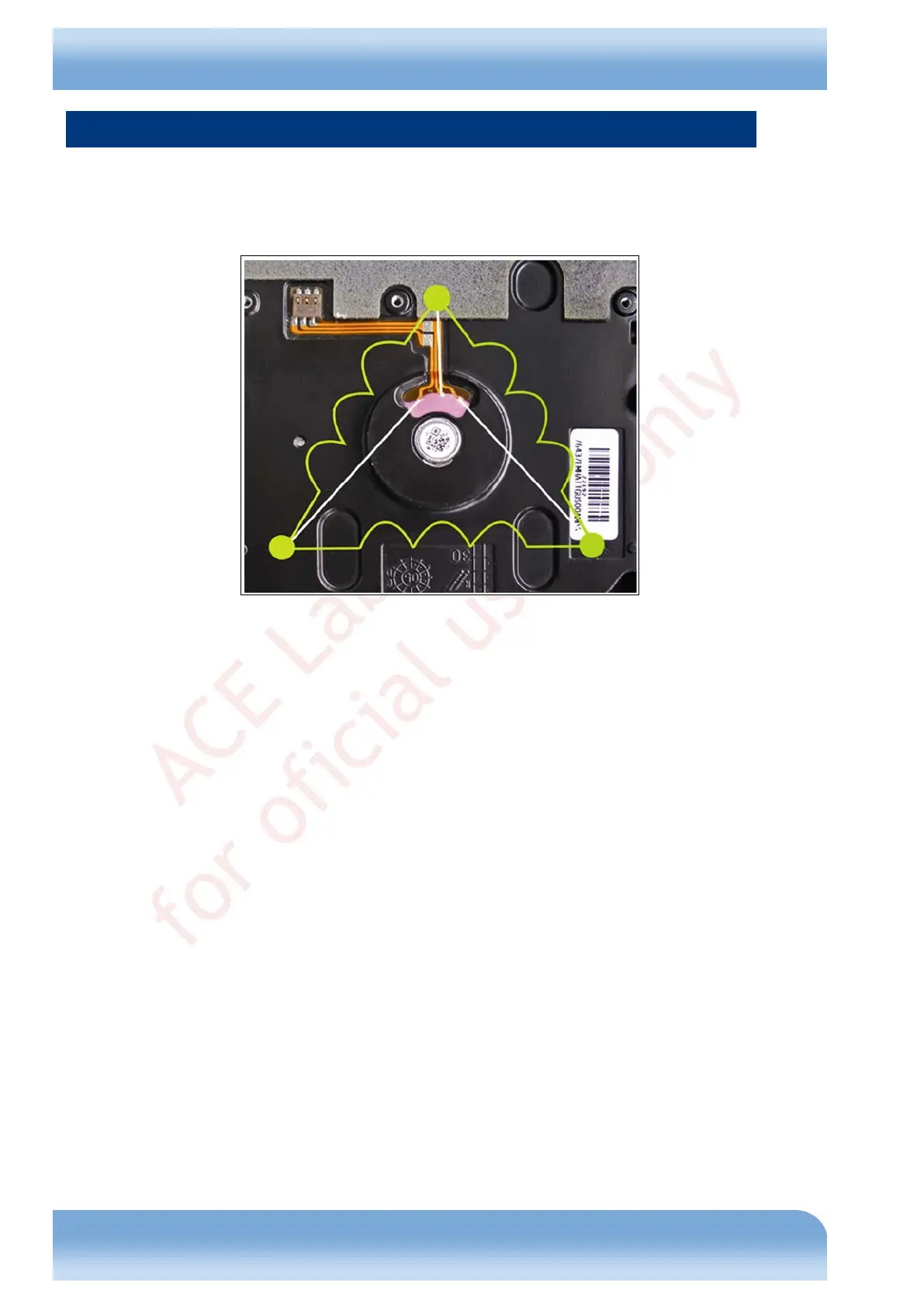

Motors in Seagate drives use the triangular layout (Fig. 11.1.), so you have to check three pairs of connection points for
drive coils. Resistance between pairs of the coils connection points in a functional drive is ~ 3.4 Ohm. You can
determine the value more precisely for each individual case by measuring the coils resistance on a functional drive
belonging to the same family.
Fig. 11.1.
