100 Chapter 3
Replacing the LVDS Cable

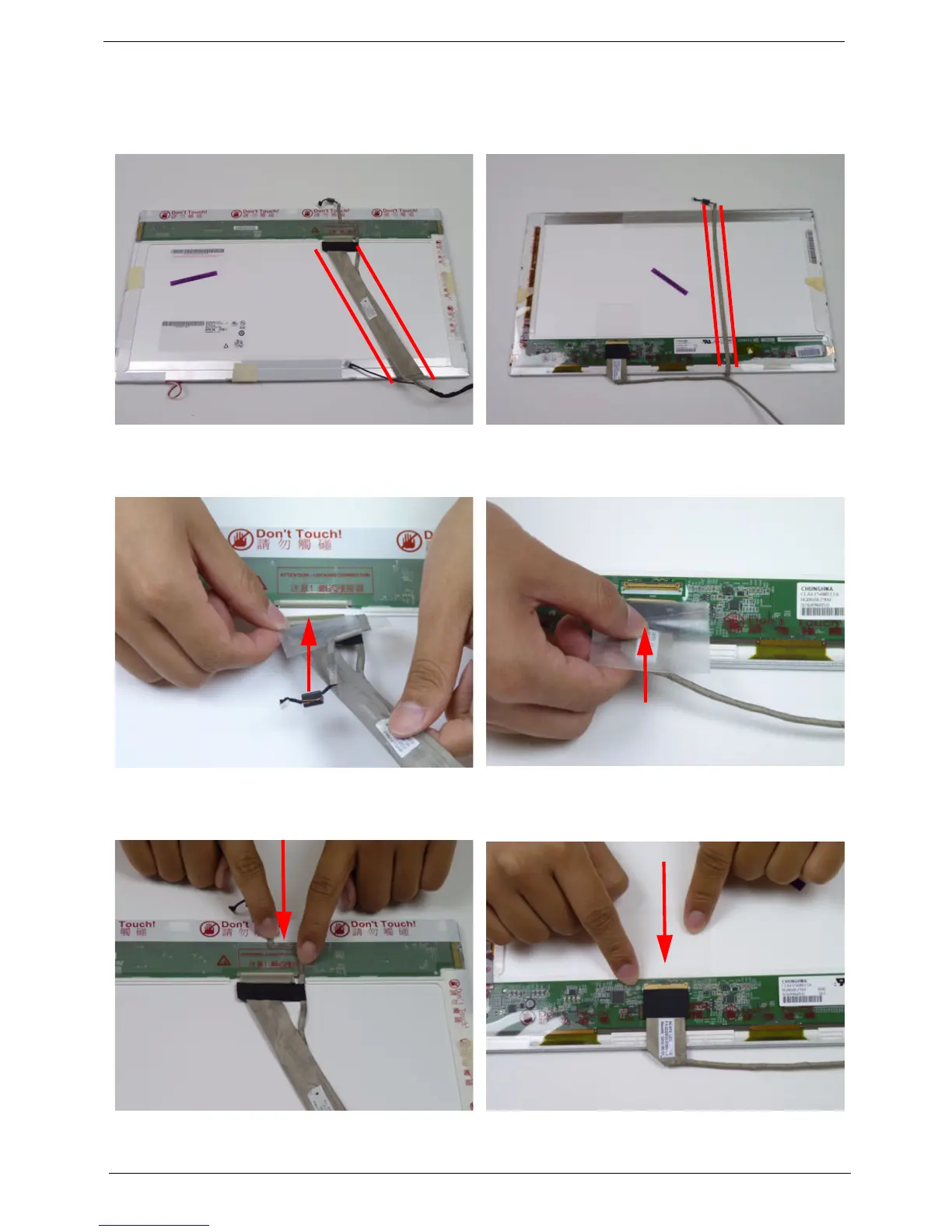

5. Place the LVDS cable onto the back of the panel.
6. Connect the LVDS cable to the panel.
7. Replace the mylar to secure the LVDS cable.
LCD LED
LCD LED
LCD LED
