Removing the Thermal Module

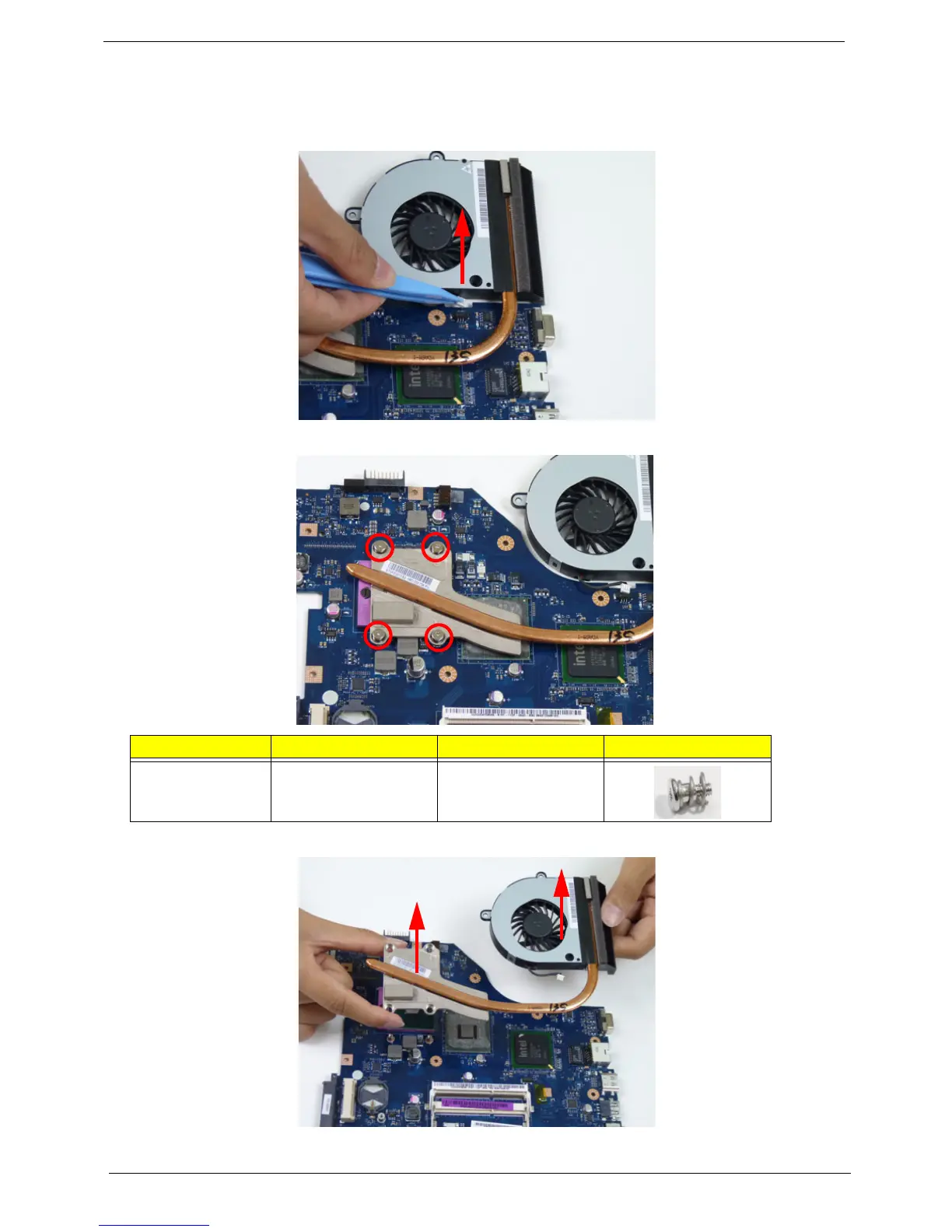

1. See “Removing the Upper Cover” on page 61.
2. Disconnect the fan cable.
3. Remove the four (4) securing screws (in reverse numerical order from screw 4 to 1) from the thermal module.
.
4. Carefully lift the thermal module clear of the mainboard.
Step Size Quantity Screw Type
Thermal Module M1.98*3 (red
callouts)
4
1
2
3
4
