Chapter 3 73

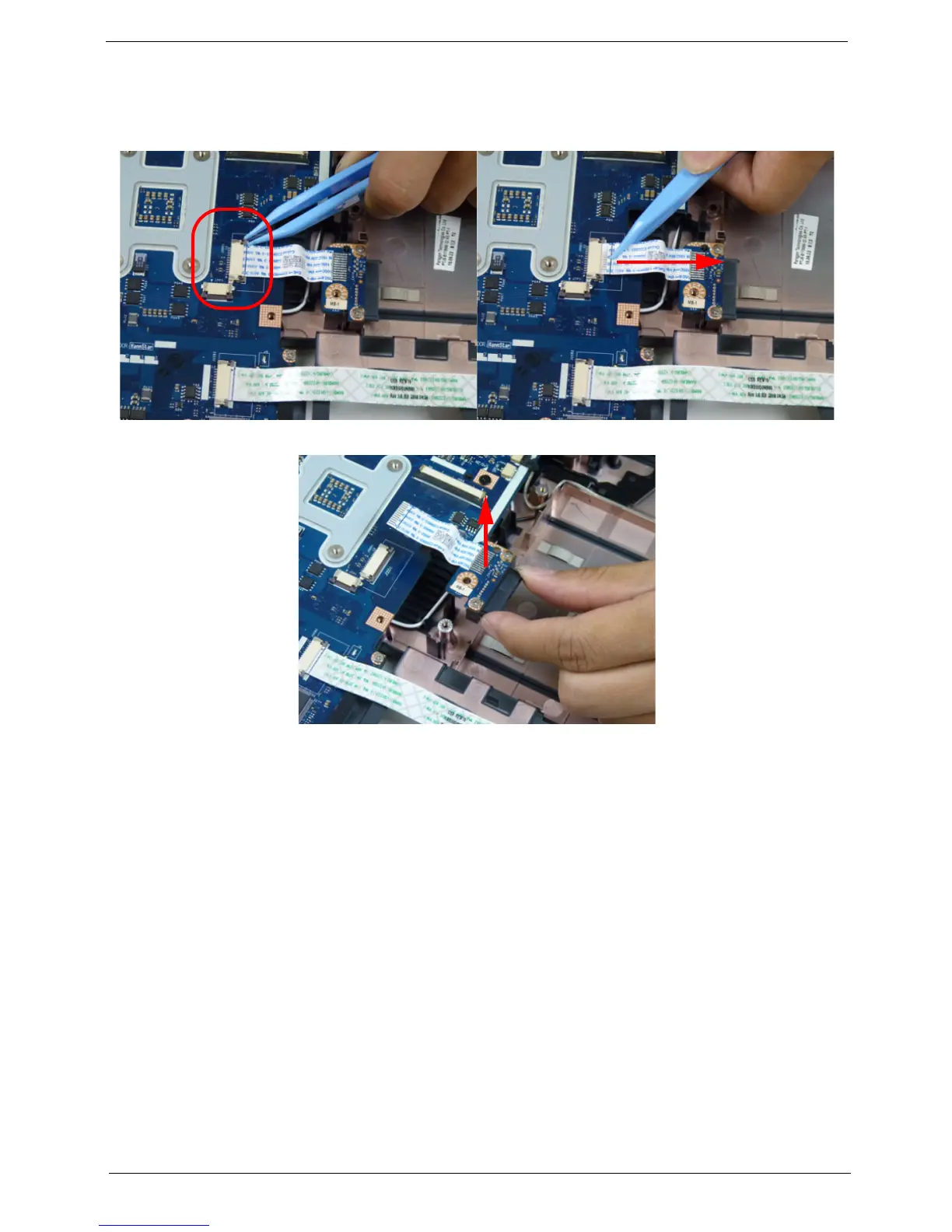

Removing the ODD Connector Board
1. See “Removing the Upper Cover” on page 61.
2. Unlock and disconnect the ODD FFC from the mainboard.
3. Lift the ODD connector board from the lower cover.
