Acer 5336 - Removing the LCD Assembly

80 Chapter 3
Removing the LCD Assembly
1. See “Removing the Mainboard” on page 74.

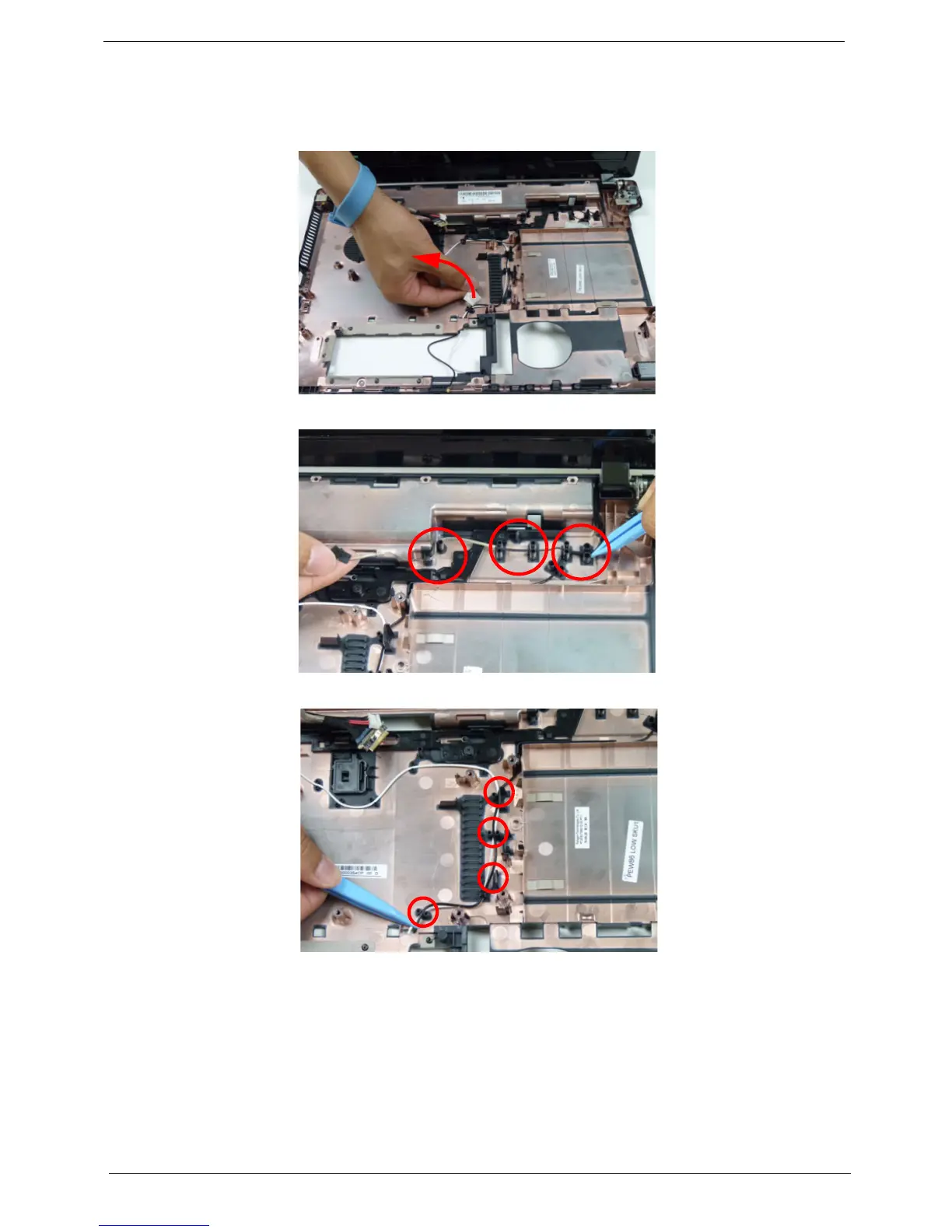

2. Remove the adhesive tape securing the antennas to the lower cover.
3. Free the microphone cable from the cable guides as shown.
4. Free the black and white antenna cables from the cable guides as shown
.
