Removing the LCD/LED Panel
1. See “Removing the LCD Bezel” on page 85.

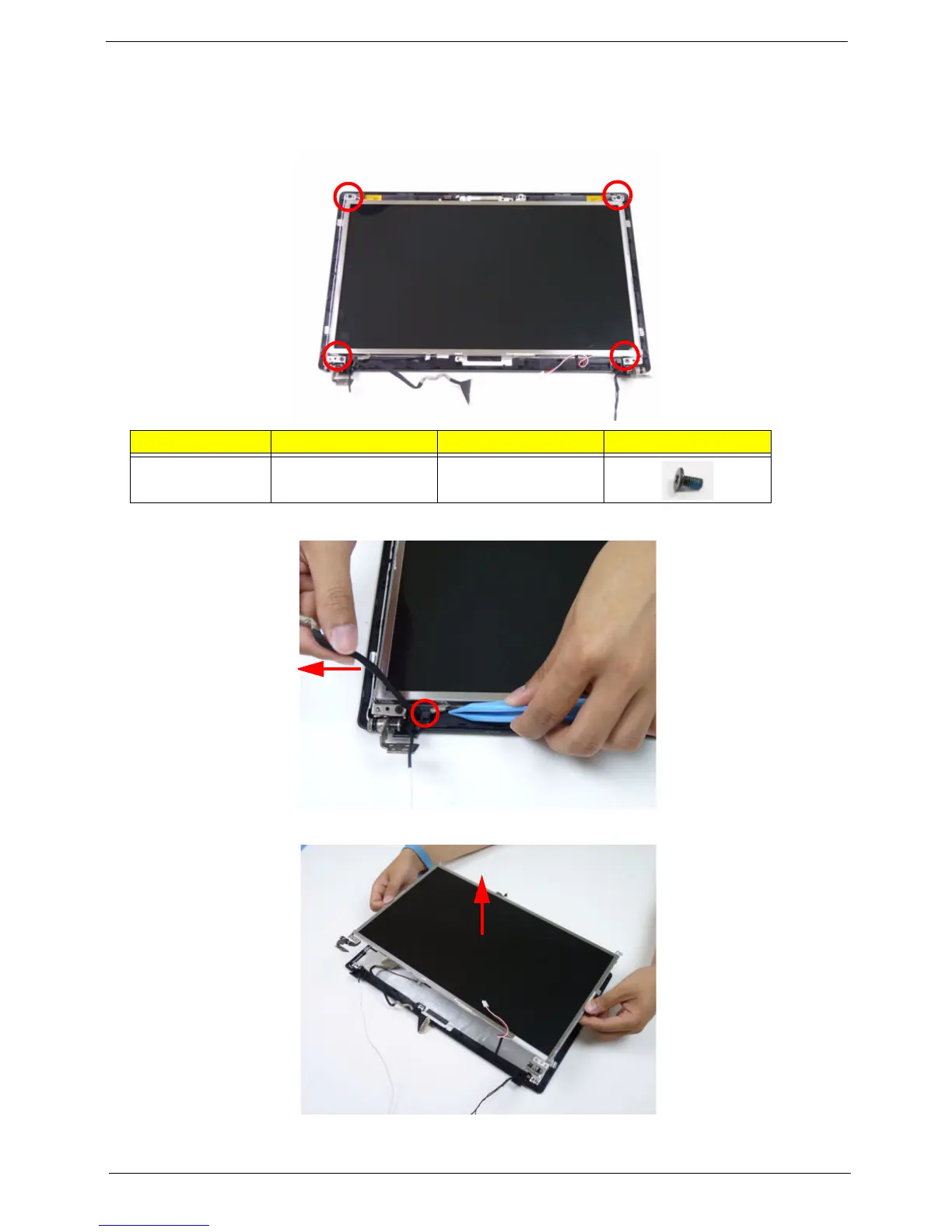

2. Remove the four (4) securing screws from the LCD/LED panel.
3. Remove the cable from the cable guide.
4. Lift the LCD/LED panel clear of the module.
Step Size Quantity Screw Type
LCD/LED Panel M2.5*5 4
