Chapter 3 115

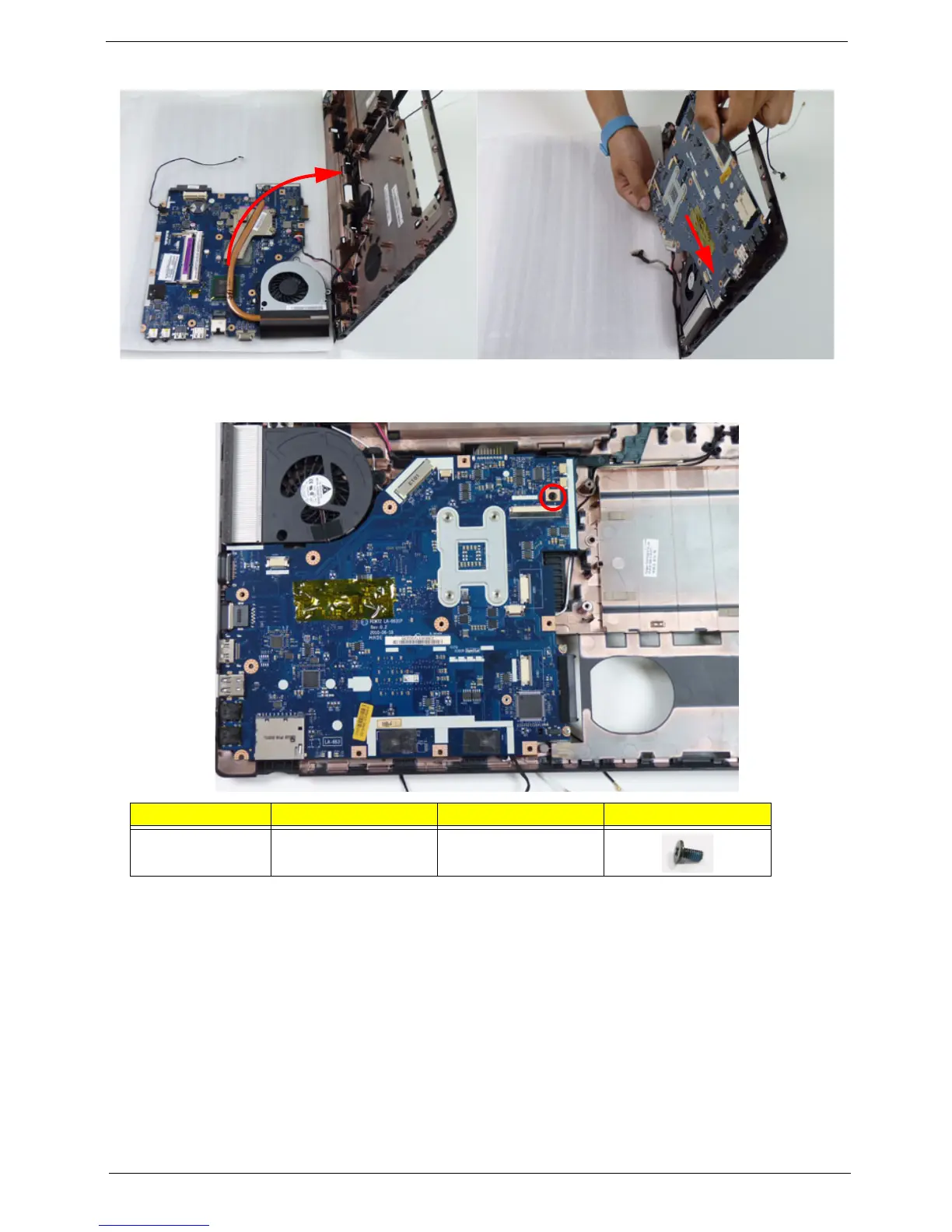

4. Place the mainboard in the chassis, left edge first to line up the I/O ports.
NOTE: Ensure the I/O ports are positioned correctly through the casing.
5. Replace the one (1) securing screw to the mainboard.
Step Size Quantity Screw Type
Mainboard M2.5*5 1
