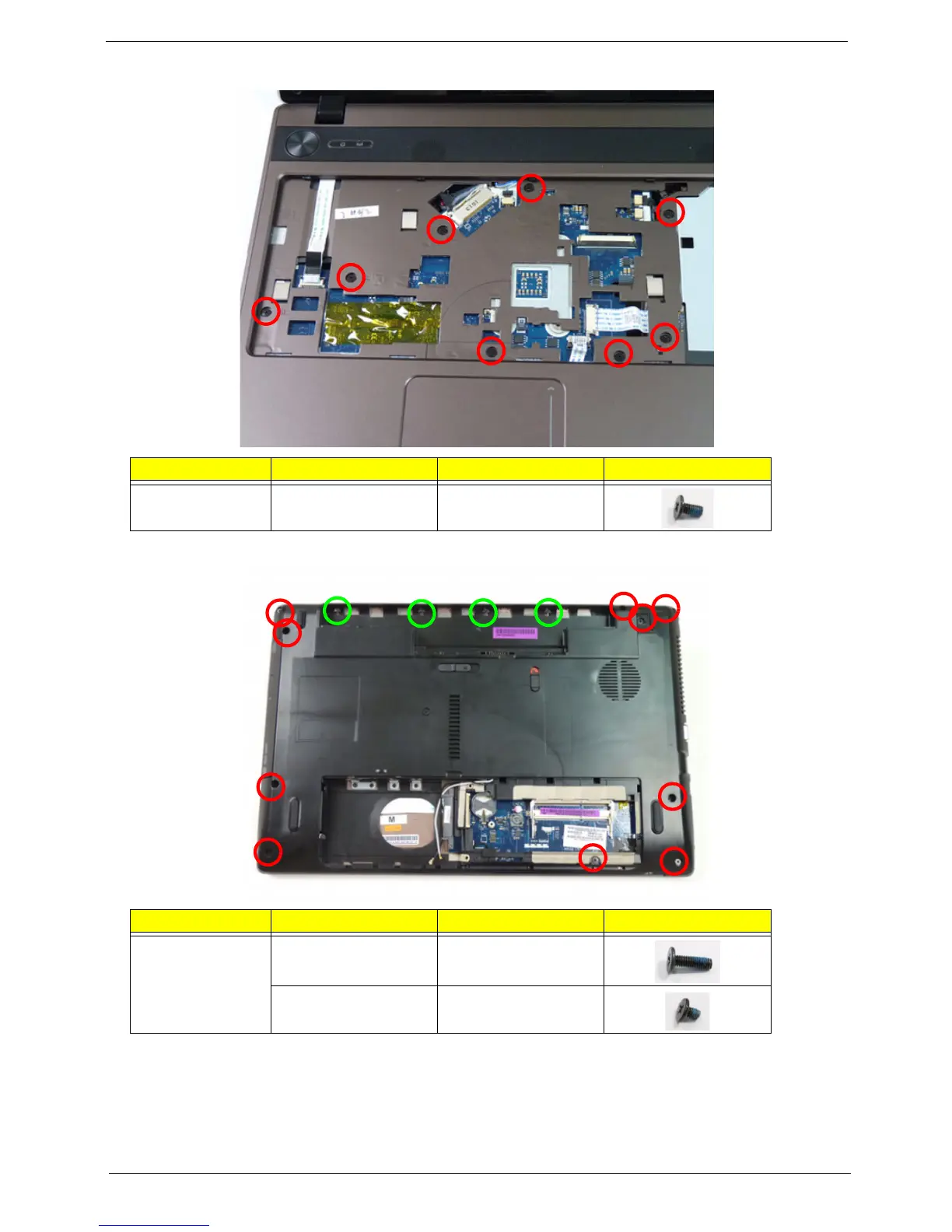

6. Replace the eight (8) screws to secure the upper cover as shown.
7. Turn the computer over. Replace the ten (10) screws on the lower cover and four (4) screws in the battery bay.
Step Size Quantity Screw Type
Upper Cover M2.5*5 8
Step Size Quantity Screw Type
Lower Cover M2.5*8
(red callout)
10
M2*3
(green callout)
4
