Acer ASPIRE 5252 - Replacing the Microphone Cable

Chapter 3 103
Replacing the Microphone Cable

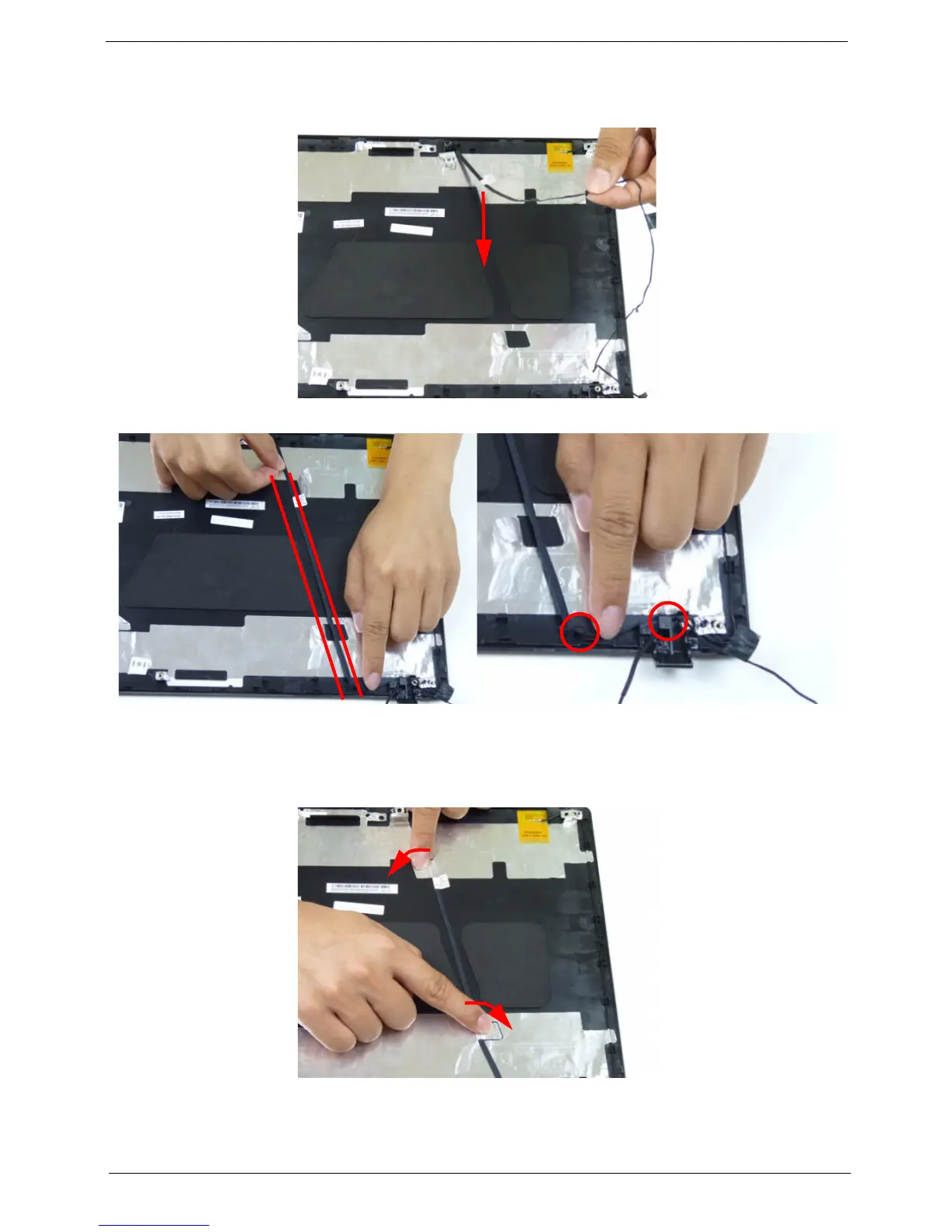

1. Place the microphone set in the panel.
2. Run the cable along the cable channel.
IMPORTANT: Ensure that the cable runs between the callouts to avoid trapping when the panel is replaced in the
LCD module.
3. Fold over the foil tabs and continue running the microphone cable along the cable channel indicated between
the red callouts.
