112 Chapter 3
Main Module Reassembly Procedure
Replacing the DC-IN Assembly

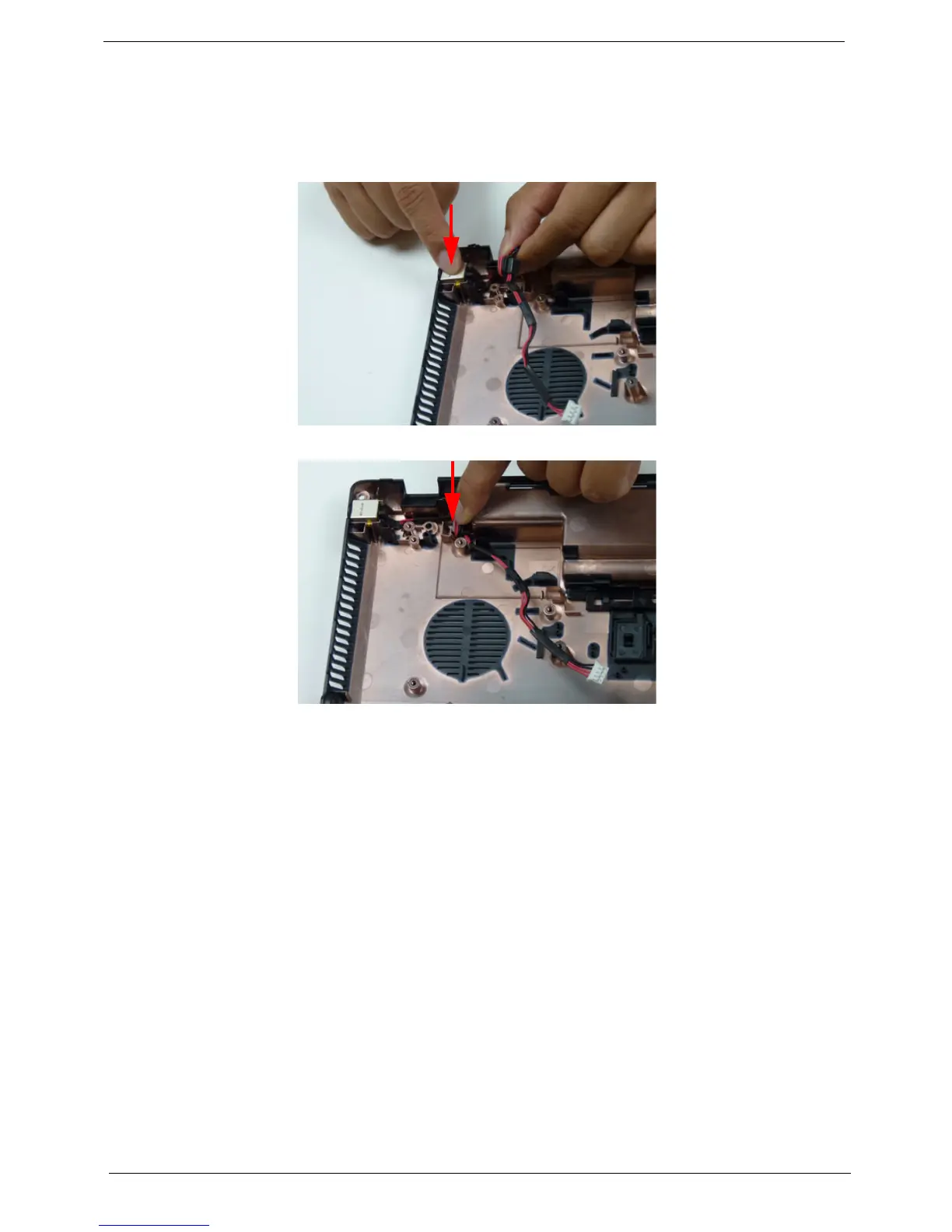

1. Place the DC-IN assembly into the lower cover.
2. Place the DC-IN cable into the lower cover as shown.
