Replacing the WLAN Module

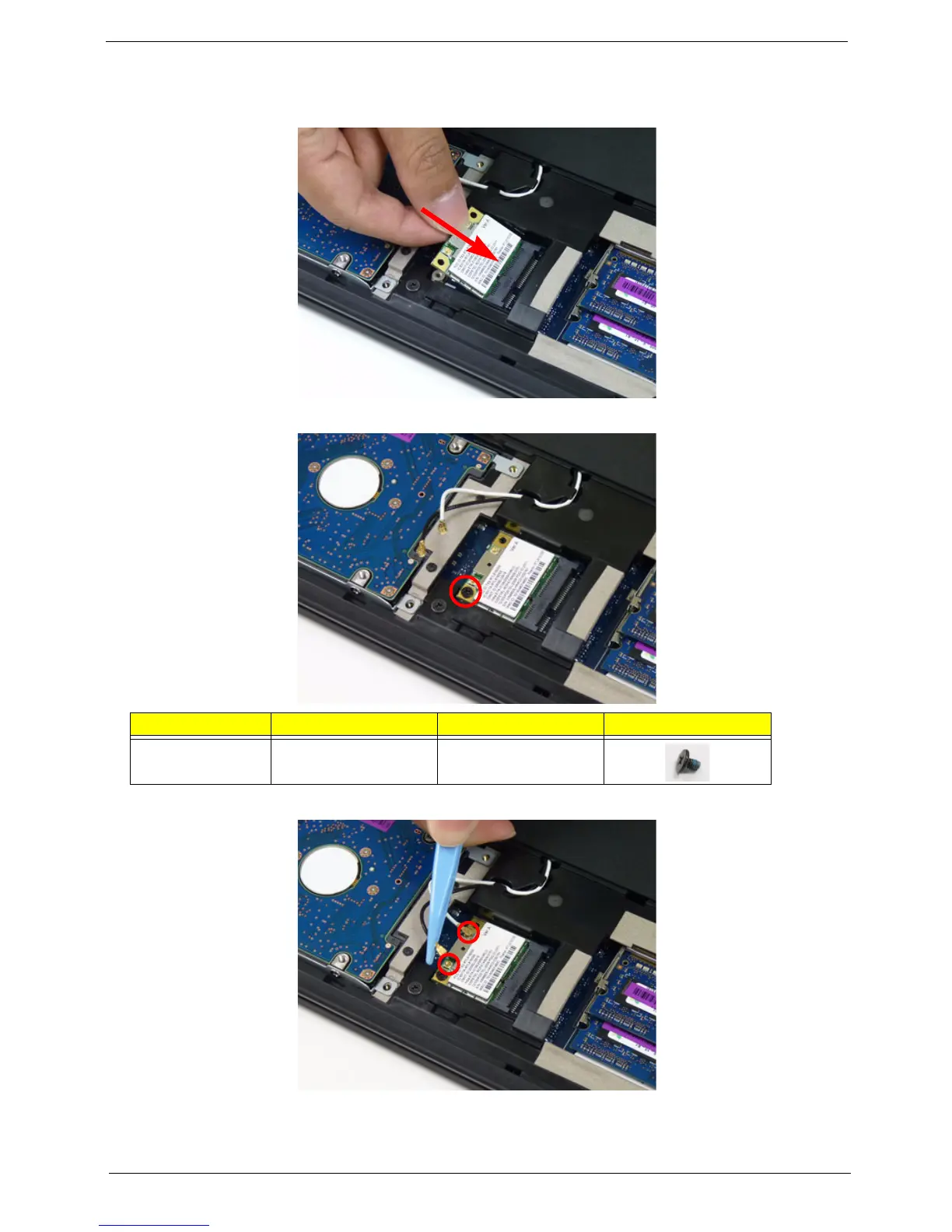

1. Insert the WLAN Module into the WLAN socket.
2. Replace the one (1) screw to secure the module.
3. Connect the two (2) antenna cables to the module.
NOTE: The black cable connects to the upper terminal (MAIN) and the white cable to the lower terminal
(MAIN).
Step Size Quantity Screw Type
WLAN Module M2*3 1
