Chapter 3 77

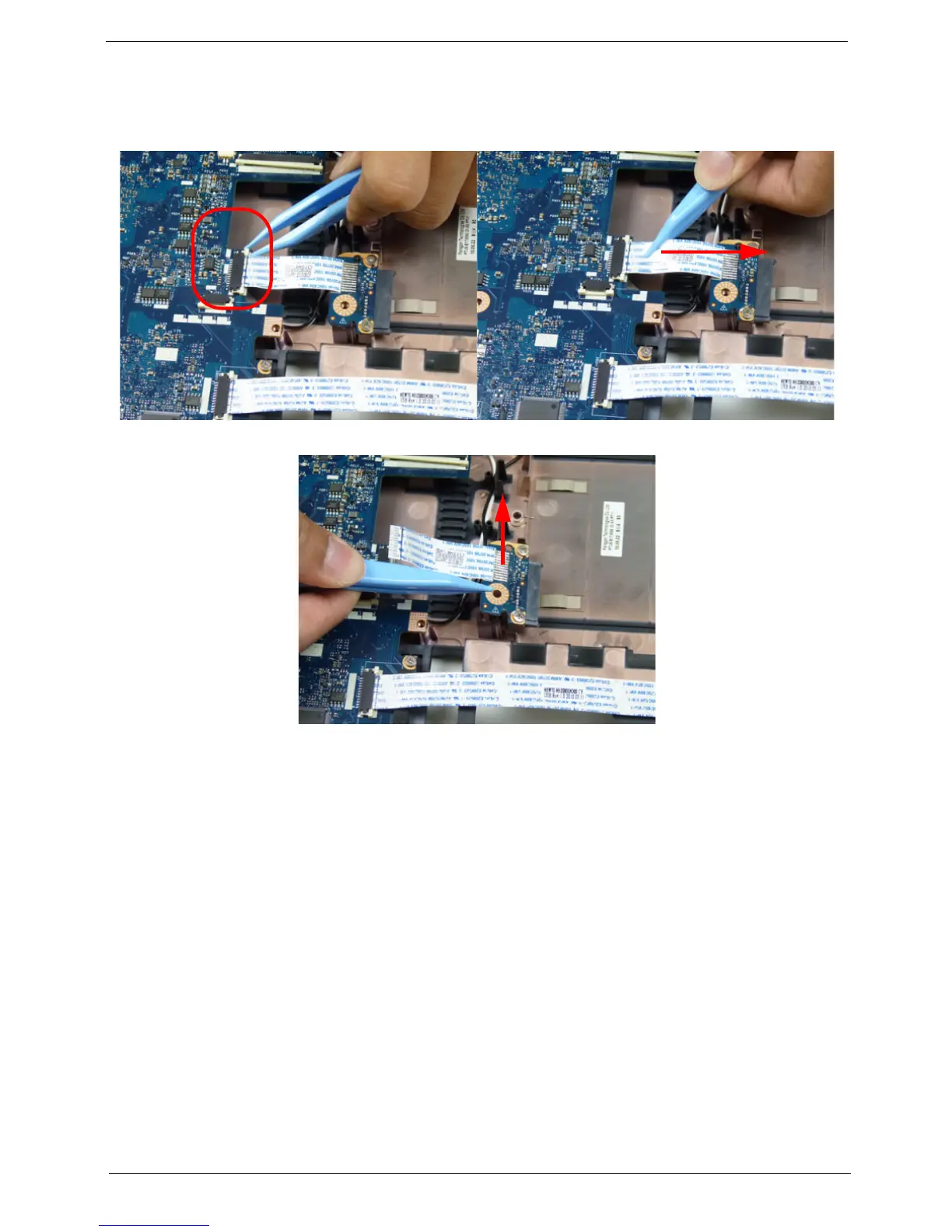

Removing the ODD Connector Board (UMA Only)
1. See “Removing the Upper Cover” on page 64.
2. Unlock and disconnect the ODD FFC from the mainboard.
3. Lift the ODD connector board from the lower cover.
