Acer ASPIRE 5252 - Jumper and Connector Locations; Top View (Discrete)

Chapter 5 167

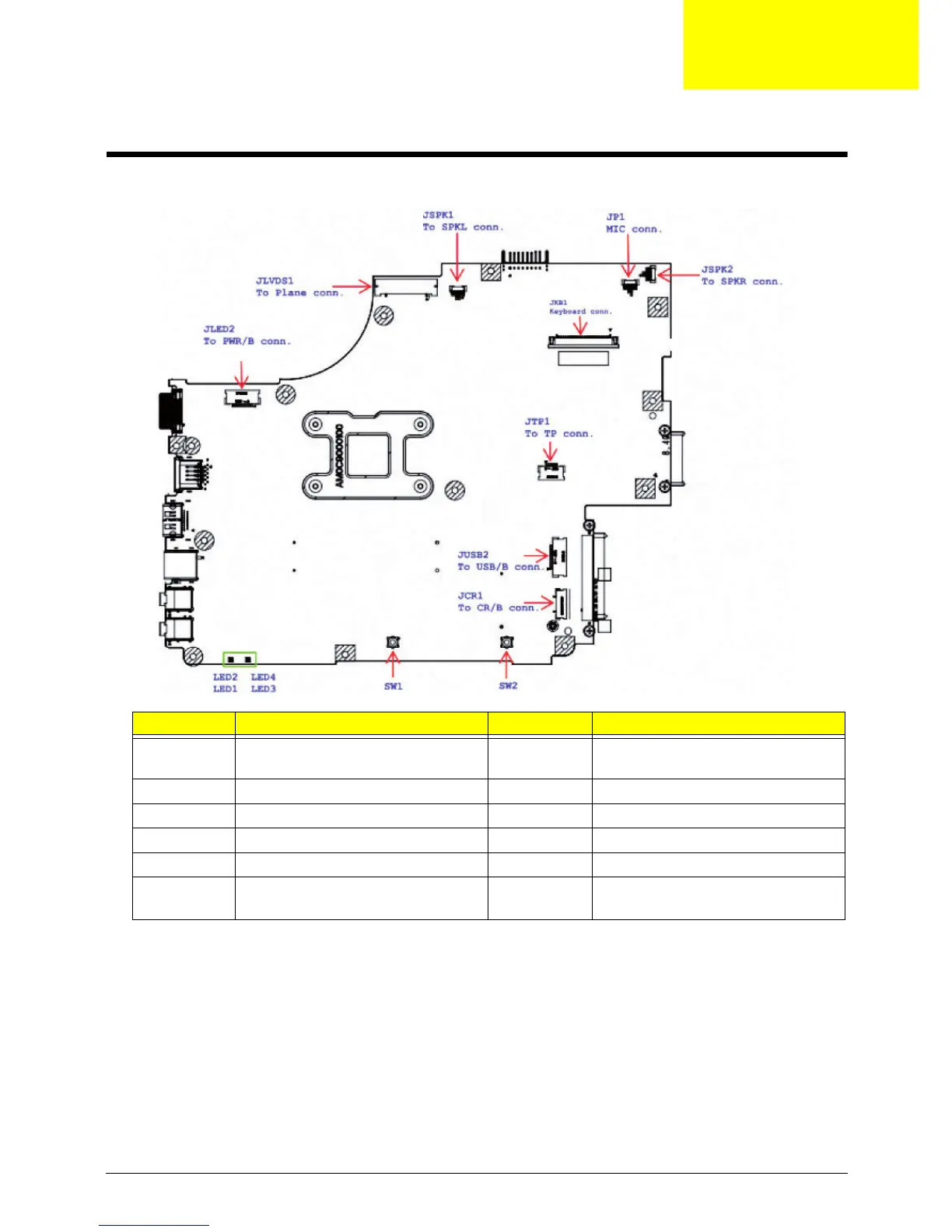

Jumper and Connector Locations
Top View (Discrete)
Item Description Item Description
JLVDS1 LED / CCFL Connector JCR1 Card Reader Board (FFC)
Connector
JSPK2 Left Speaker Connector JLED2 Powerboard (FFC) Connector
JSPK1 Right Speaker Connector JP1 Internal MIC Connector
JKB1 Keyboard Connector SW2/SW3 Left button / Right button
JTP1 Touch pad (FFC Connector) LED1/LED3 Power State Indicator
JUSB2 Power USB Board (FFC)
Connector
LED2/LED4 Battery Charging Indicator
