Acer Extensa 5635 - Bottom View

112 Chapter 5

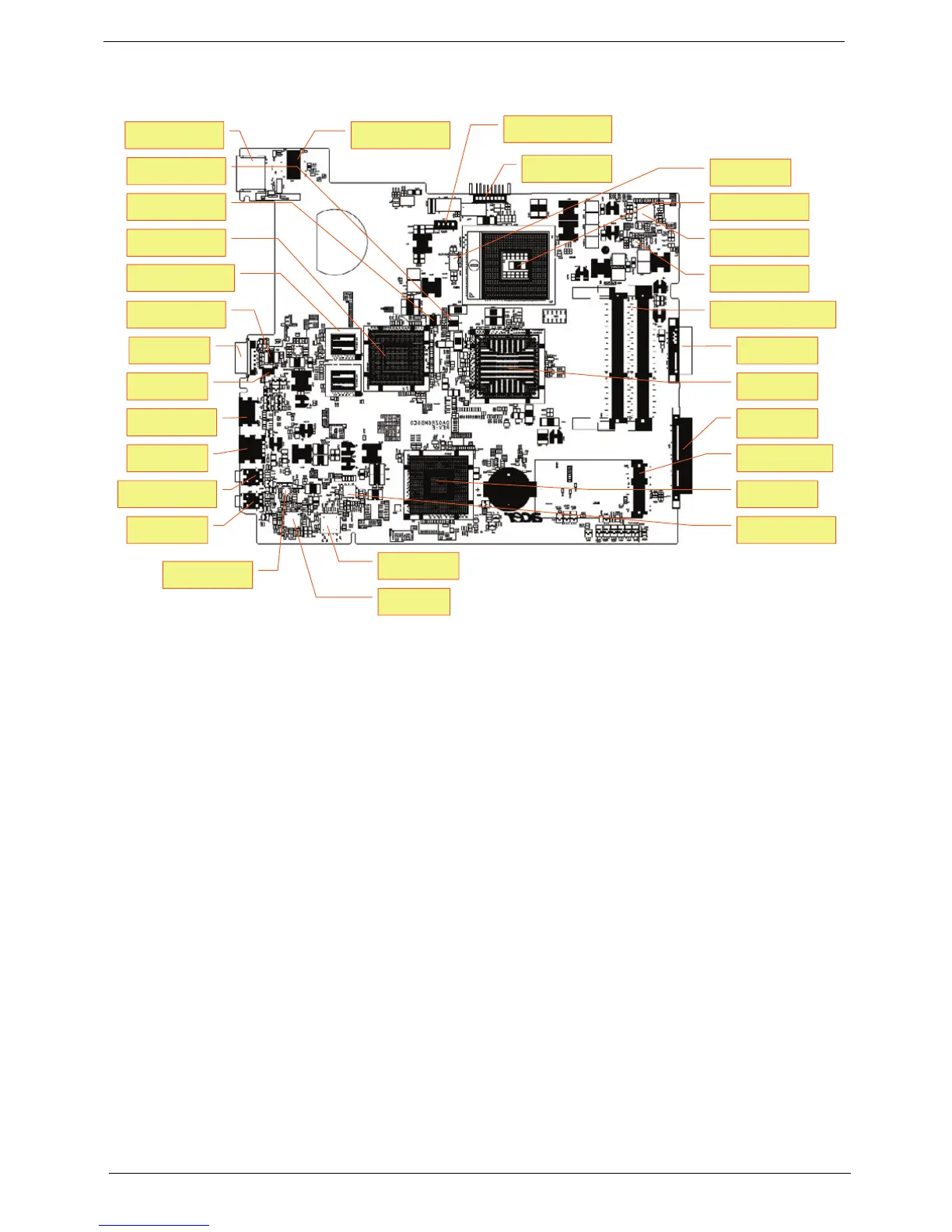

Bottom View
U25 / U27 Dis VRAM IC.
U22 / CPU socket
CN11 / CRT Conn
CN9 / LAN Conn
CN15 / HDMI Conn.
CN16 / USB
CN18 / EXT Mic conn
CN21 / EXT HP
U21 / LAN transformer
PU8 VGA 1.1V
PU10/ 3V/5V PWM IC
CN19 Mini card Conn
PJ1 Battery Conn
CN14 /FAN Conn
CN12, CN13 / Memory DIMM
U28 N.B.
U27 / N10 VGA IC
CN10 ODD Conn
U9 / CRT Switch IC
U32 SB
CN17 HDD Conn
PJ2/ PWR Jack conn.
U24 DIS HDCP ROM
U23 Dis Spectrum IC
U31 SPK Amplify IC
U33 Codec IC
U18 Card reader
PU6/ CPU core
PU7/ +1.05V PWM
