Acer Extensa 5635 - Removing the Thermal Module

76 Chapter 3

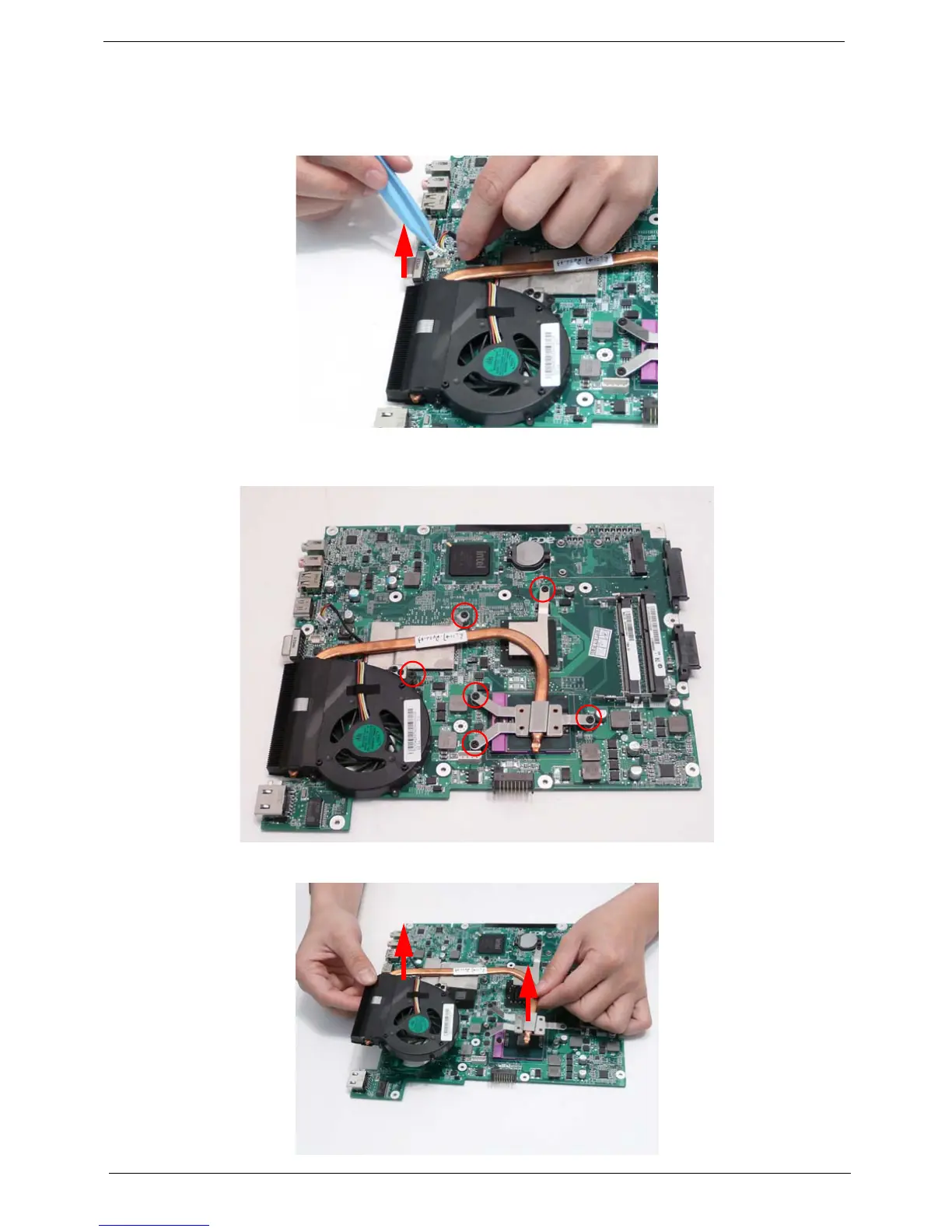

Removing the Thermal Module
1. See “Removing the Mainboard” on page 73.
2. Disconnect the fan cable from the Mainboard.
3. Loosen the six captive screws (in reverse numerical order from screw 6 to screw 1) securing the Thermal
Module in place.
4. Lift the Thermal Module clear of the Mainboard.
1
2
3
4
5
6
