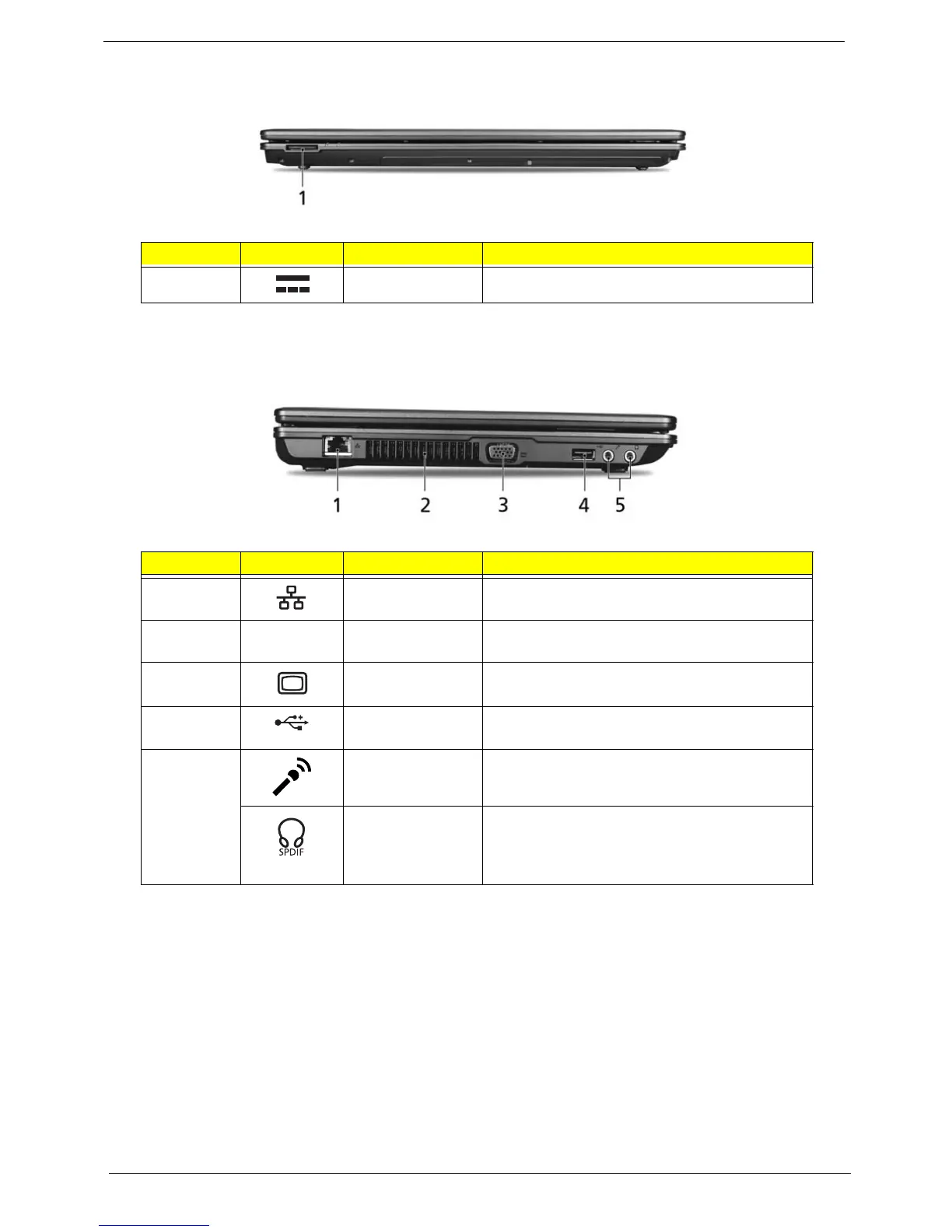

8 Chapter 1
Rear View
Left View
No. Icon Item Description
1 DC-in jack Connects to an AC adapter.
No. Icon Item Description
1 Ethernet (RJ-45)
port
Connects to an Ethernet 10/100/1000-based
network.
2 Ventilation slots Enable the computer to stay cool, even after
prolonged use.
3 External display
(VGA) port
Connects to a display device
(e.g. external monitor, LCD projector).
4
USB 2.0 port Connect to USB 2.0 devices
(e.g. USB mouse, USB camera)
5 Microphone jack Accepts inputs from external microphones.
Headphones/
speaker/line-out
jack with S/PDIF
support
Connects to audio line-out devices
(e.g., speakers, headphones).
