Acer Extensa 5635 - Removing the Speaker Module

Chapter 3 65
Removing the Speaker Module
1. See “Removing the Upper Cover” on page 60.

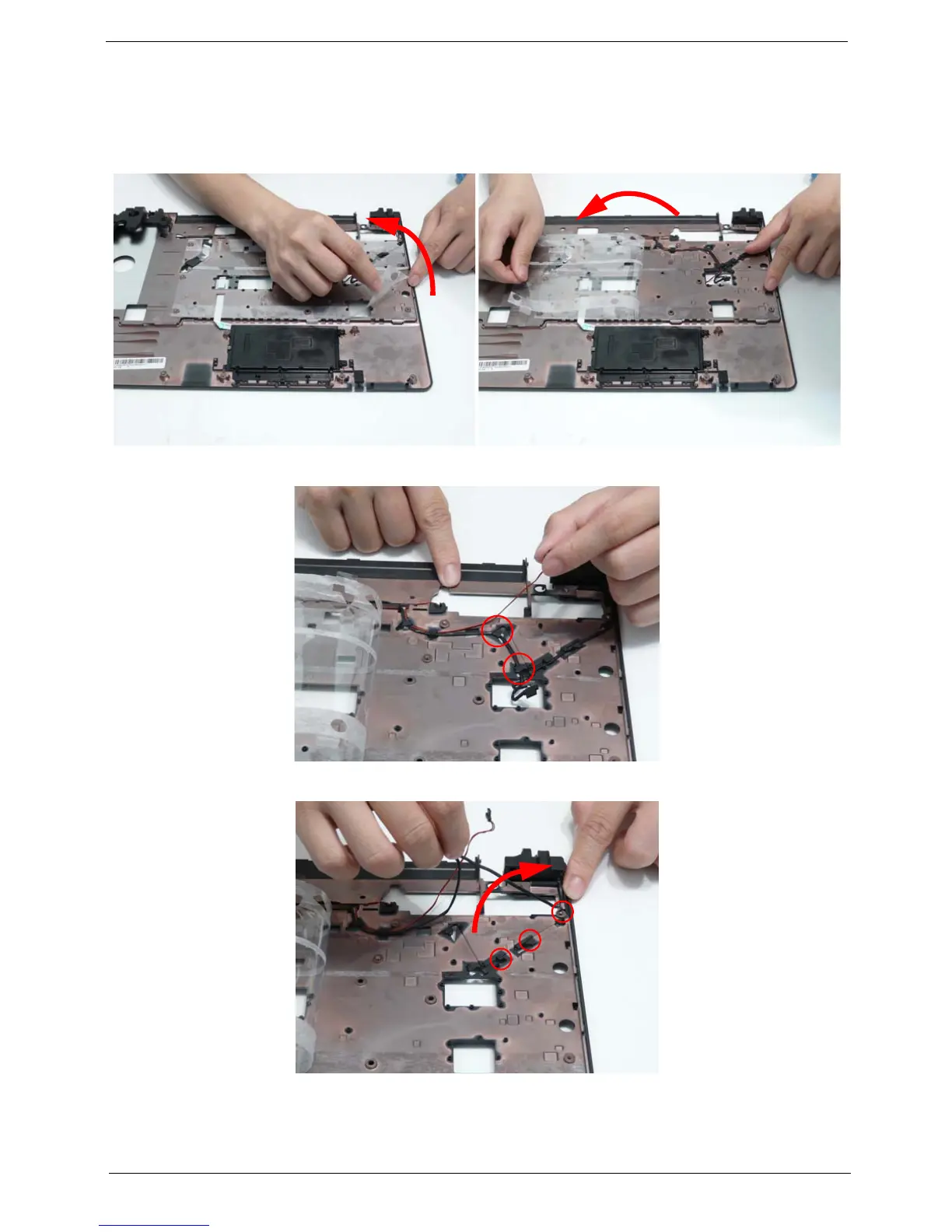

2. Lift the protective sheet away from the Upper Cover to expose the Microphone and Speaker cables as
shown.
3. Remove the Microphone cable from the first two cable clips as shown.
4. Remove the left speaker cable from the cable channel. Ensure that the cable is free from all cable clips.
