Acer Extensa 5635 - Removing the Hinge Supports

Chapter 3 75

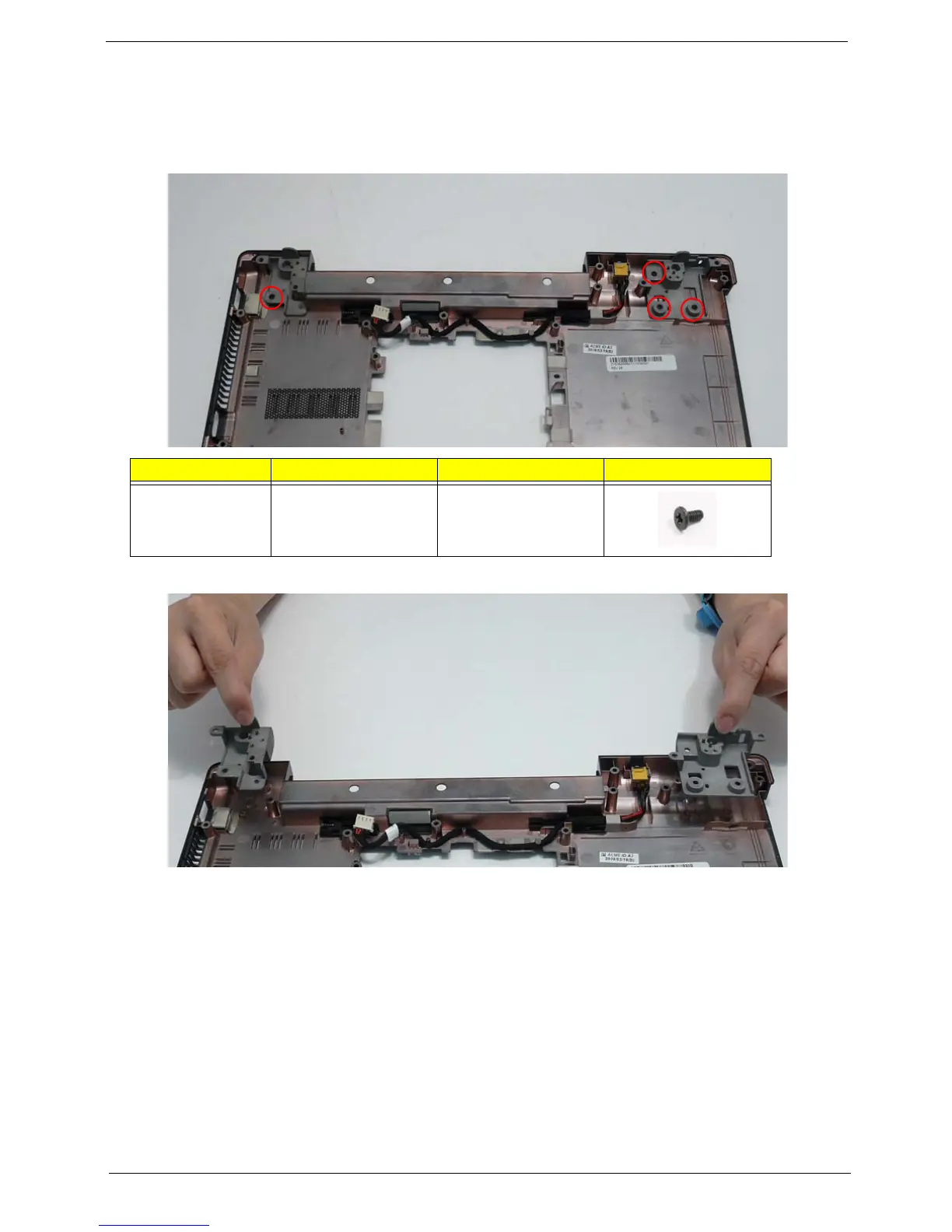

Removing the Hinge Supports
1. See “Removing the Mainboard” on page 73.
2. Remove the four screws (one on the left and three on the right) securing the Hinge Supports to the Lower
Cover.
3. Lift the Hinge Supports clear of the Lower Cover.
Step Size Quantity Screw Type
Hinge Supports M2.5*4 4
