Acer Extensa 5635 - Page 68

58 Chapter 3

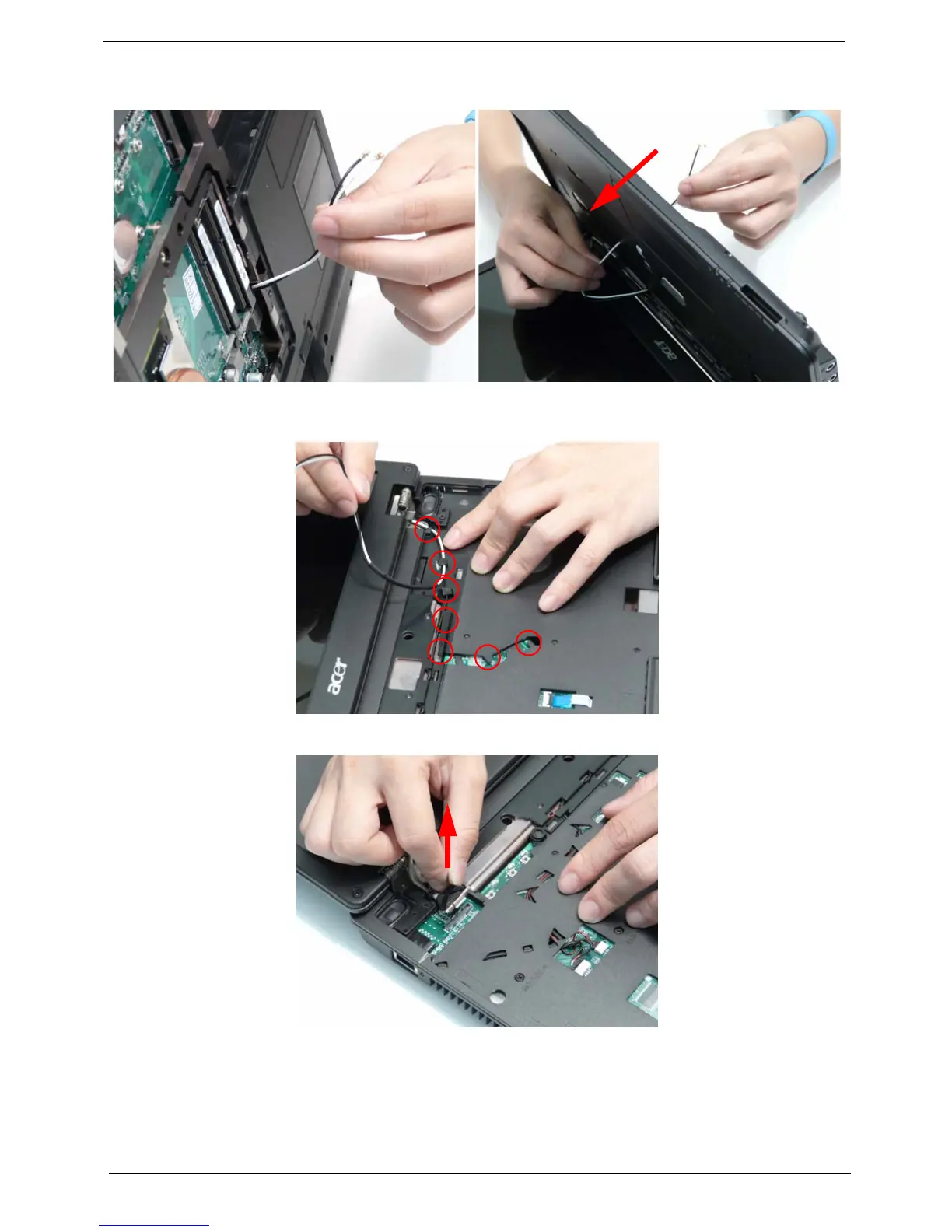

4. Pull the Antenna cables through the Upper Cover as shown. Ensure that the Antennas are completely
free from the cover.
5. Remove the Antenna from the cable channel all the way to the Hinge Well. Ensure that the cables are free
from all cable clips.
6. Grasp the pull tab and lift upward as shown to disconnect the LVDS cable.
