Acer X1160' - Disassemble Engine Module

X1160 Family/X1260 Family Condential 2-10
2-9 Disassemble Engine
Module

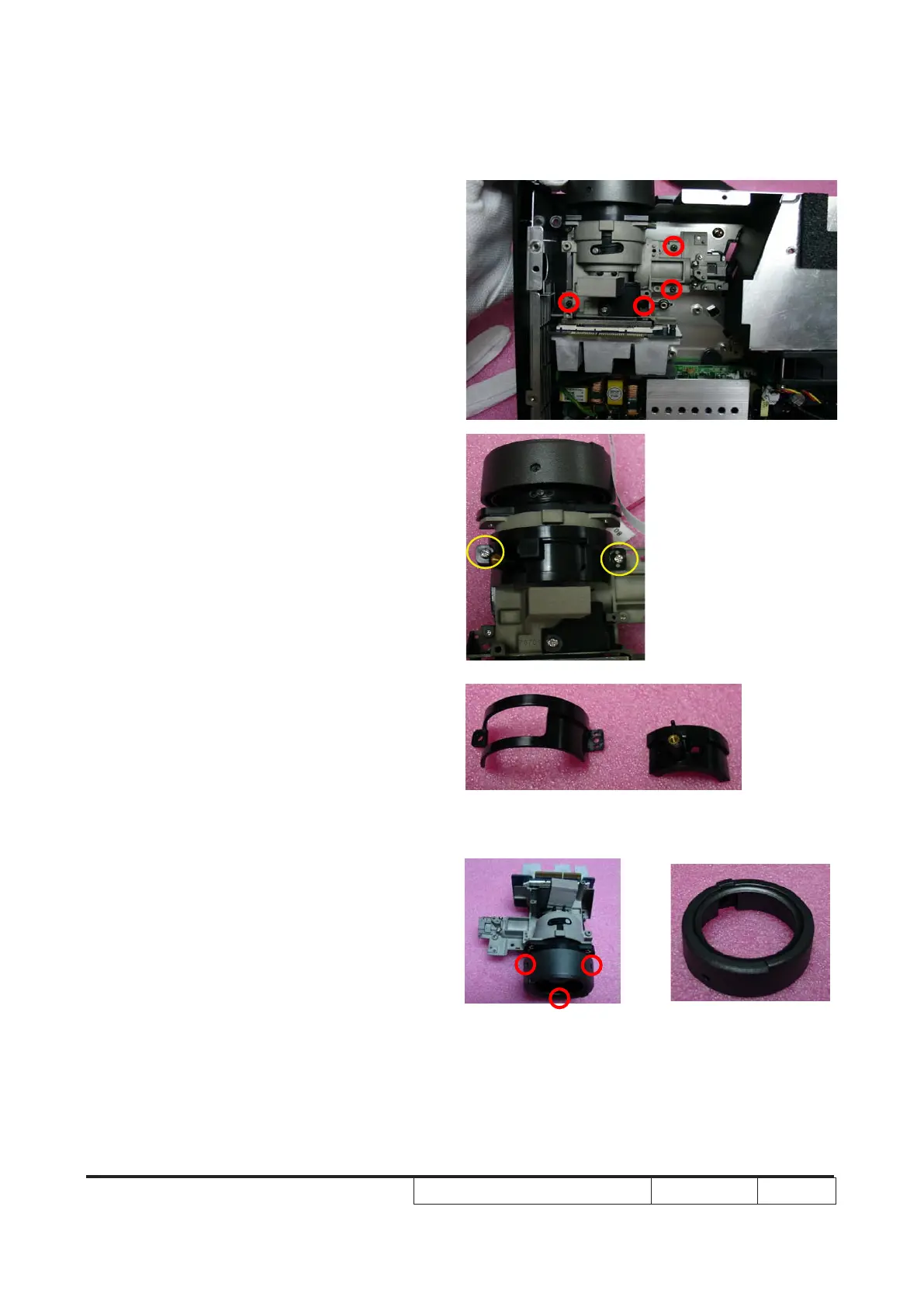

1. Unscrew 4 screws on engine module
2. Unscrew 2 screws on engine module to
disassemble the zoom ring and zoom
ring holder (only for X1260Family/
X1160Z/X1160Z refresh/X1160PZ)
3. Unscrew 3 screws on focus ring
Focus Ring
(only for X1260 Family/X1160Z/
X1160Z refresh/X1160PZ)
Zoom Ring Holder and Zoom Ring
(only for X1260 Family/X1160Z/X1160Z refresh/X1160PZ)
