Acer X1160' Service Manual

X1160 Family/X1260 Family Condential 2-27
2-26 Assemble Engine
Module

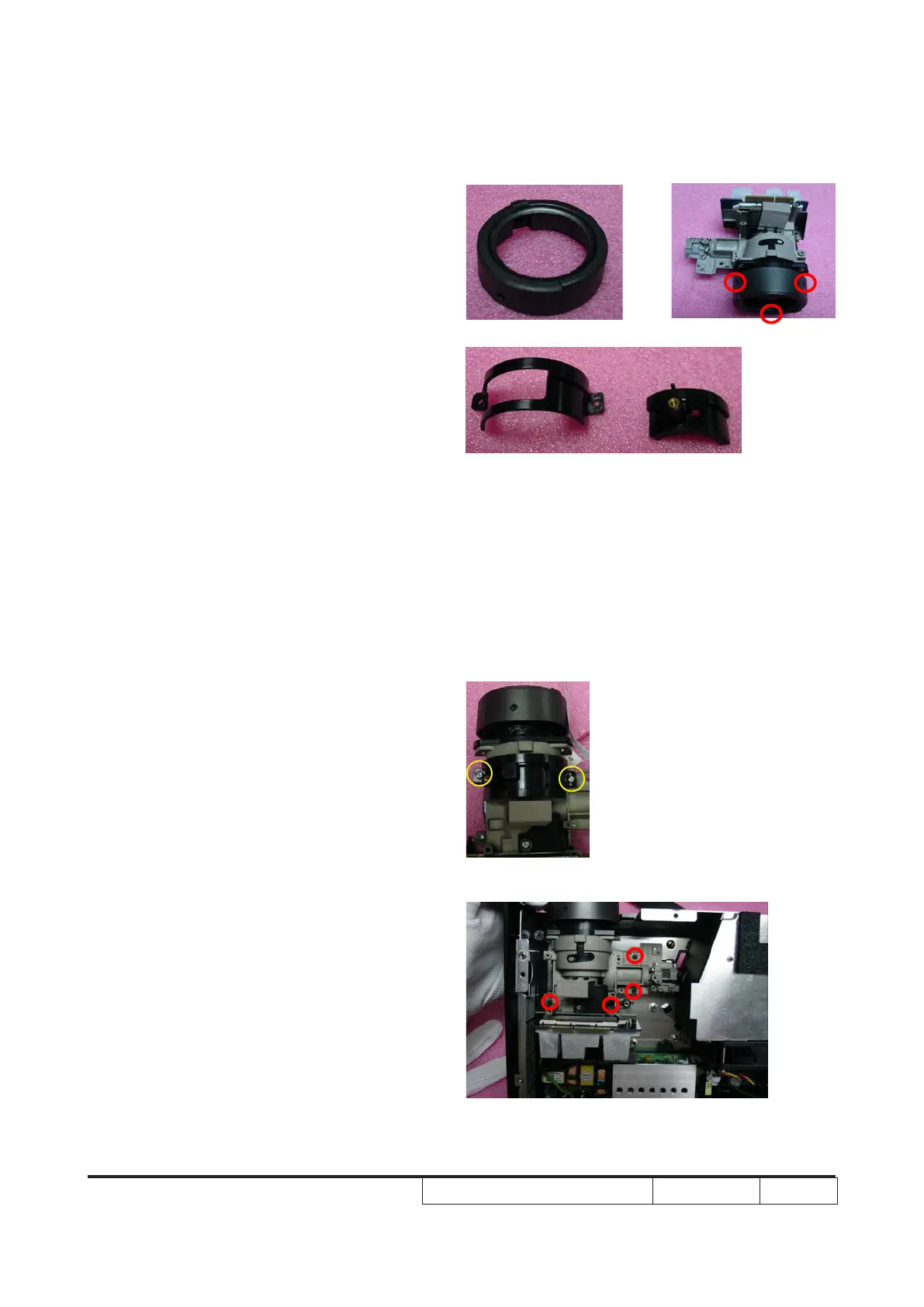

1. Screw 3 screws on focus ring
2. Screw 2 screws on engine module to
assemble the zoom ring and zoom ring
holder(only for X1260 Family/
X1160Z/X1160Z refresh/X1160PZ)
2. Screw 4 screws to assemble the engine
module
(only for X1260 Family/
X1160Z/X1160Z refresh/X1160PZ)
Zoom Ring Holder and Zoom Ring
(only for X1260 Family/X1160Z/X1160Z refresh/X1160PZ)

Acer X1160' Specifications

General

Number of colors	16.78 million colors
Projection distance	11.9 m
Vertical scan range	50 - 85 Hz
Horizontal scan range	31 - 69 kHz
Projection technology	DLP
Contrast ratio (typical)	2000:1
Screen size compatibility	0.64 - 7.62 \
Projector native resolution	SVGA (800x600)
Keystone correction, vertical	±40 °
Digital zoom	2 x
Aspect ratio	4:3, 16:9
Power supply	255 W
Dimensions (WxDxH)	267 x 187 x 80 mm
Lamp type	P-VIP
Lamp power	160 W
Light source type	Lamp
Service life of light source	4000 h
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
S-Video inputs quantity	1
Noise level	33 dB
Power consumption (standby)	8 W

Weight and Dimensions

Weight	2300 g
