Acer X193HQ - Timing Requirements

10
LCD Panel Specification
This specification applies to the 18.5 inch-wide Color a-Si TFT-LCD Module M185XW01.The display supports the
WXGA - 1366(H) x 768(V) screen format and 16.7M colors (RGB 6-bits + Hi-FRC data). All input signals are
1-channel LVDS interface and this module doesn’t contain an inverter board for backlight.

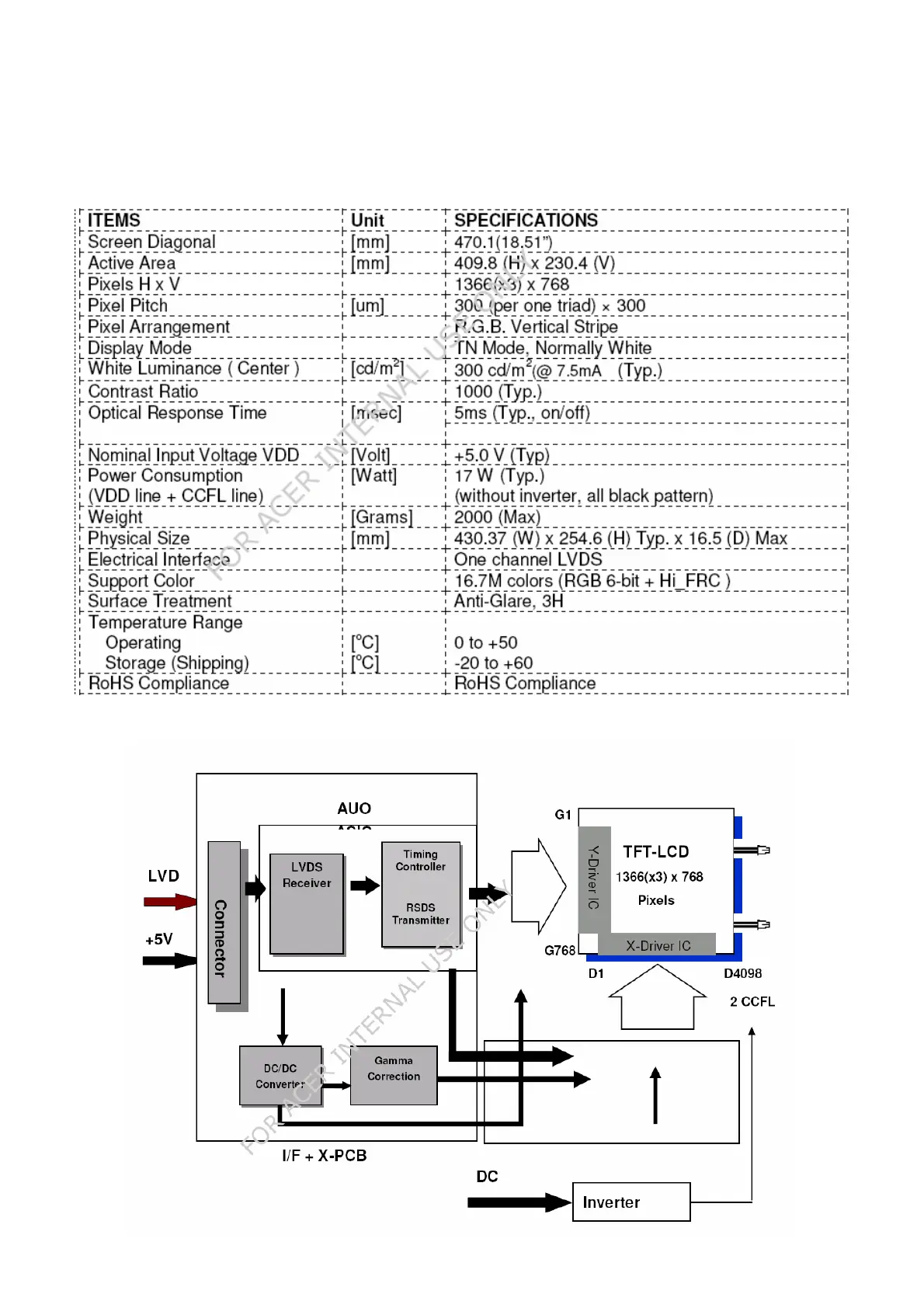

General Specifications
Function Block Diagram
