Acer X193HQ - Chapter 3 Machine Disassembly

26
Machine Disassembly
This chapter contains step-by-step procedures on how to disassemble the monitor for
maintenance.
Disassembly Procedure

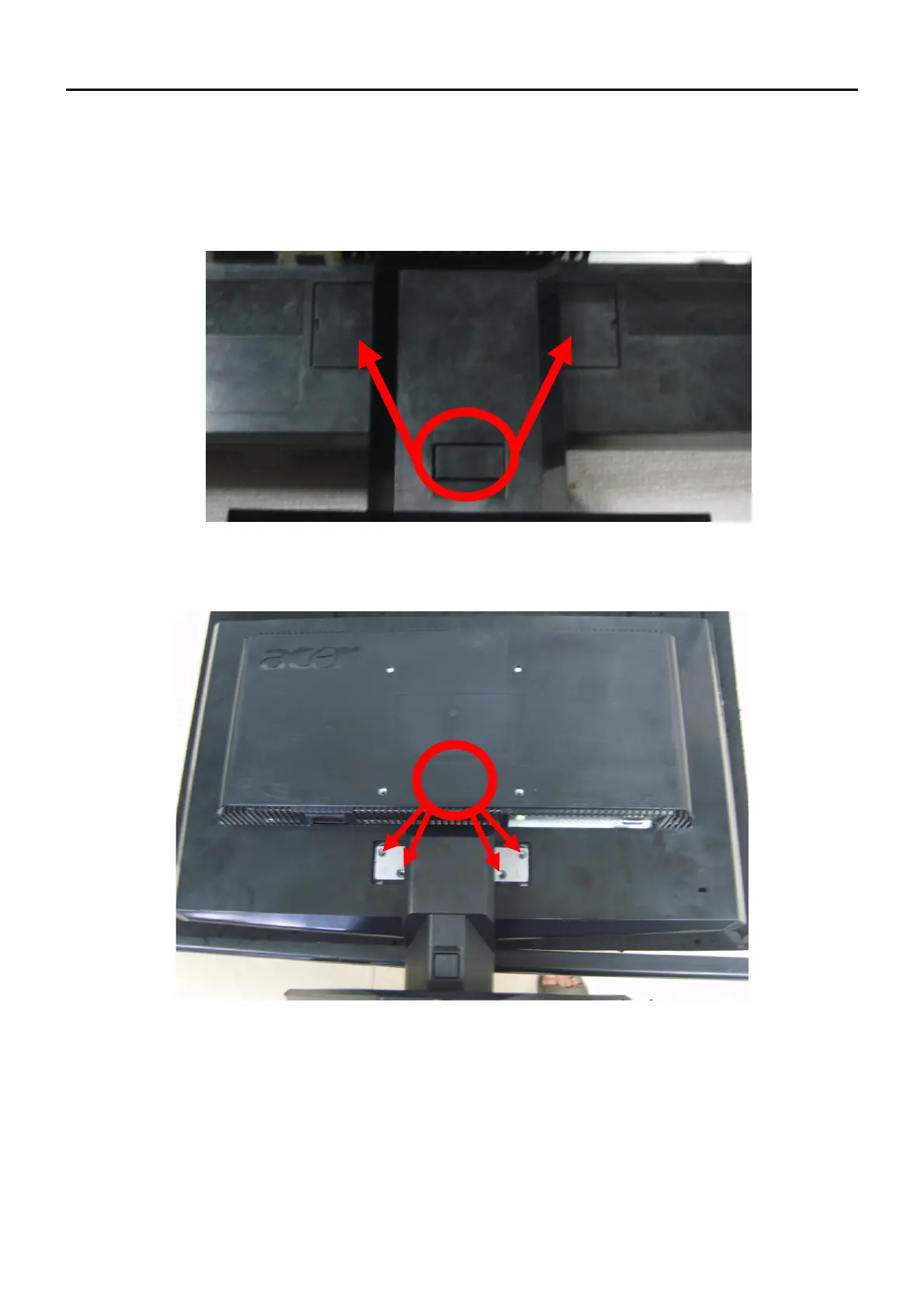

1. Remove the cover hinge as the following indicator. (Fig 1)
Fig 1
2. Remove the screws as following indicate to release base stand. (Fig 2)
Fig 2
