Acer X193HQ Service Guide

20
Operating Instructions
Press the power button to turn the monitor on or off. The other control buttons are located at front panel of the
monitor. By changing these settings, the picture can be adjusted to your personal preferences.
• The power cord should be connected.
• Connect the video cable from the monitor to the video card.
• Press the power button to turn on the monitor position. The power indicator will light up.

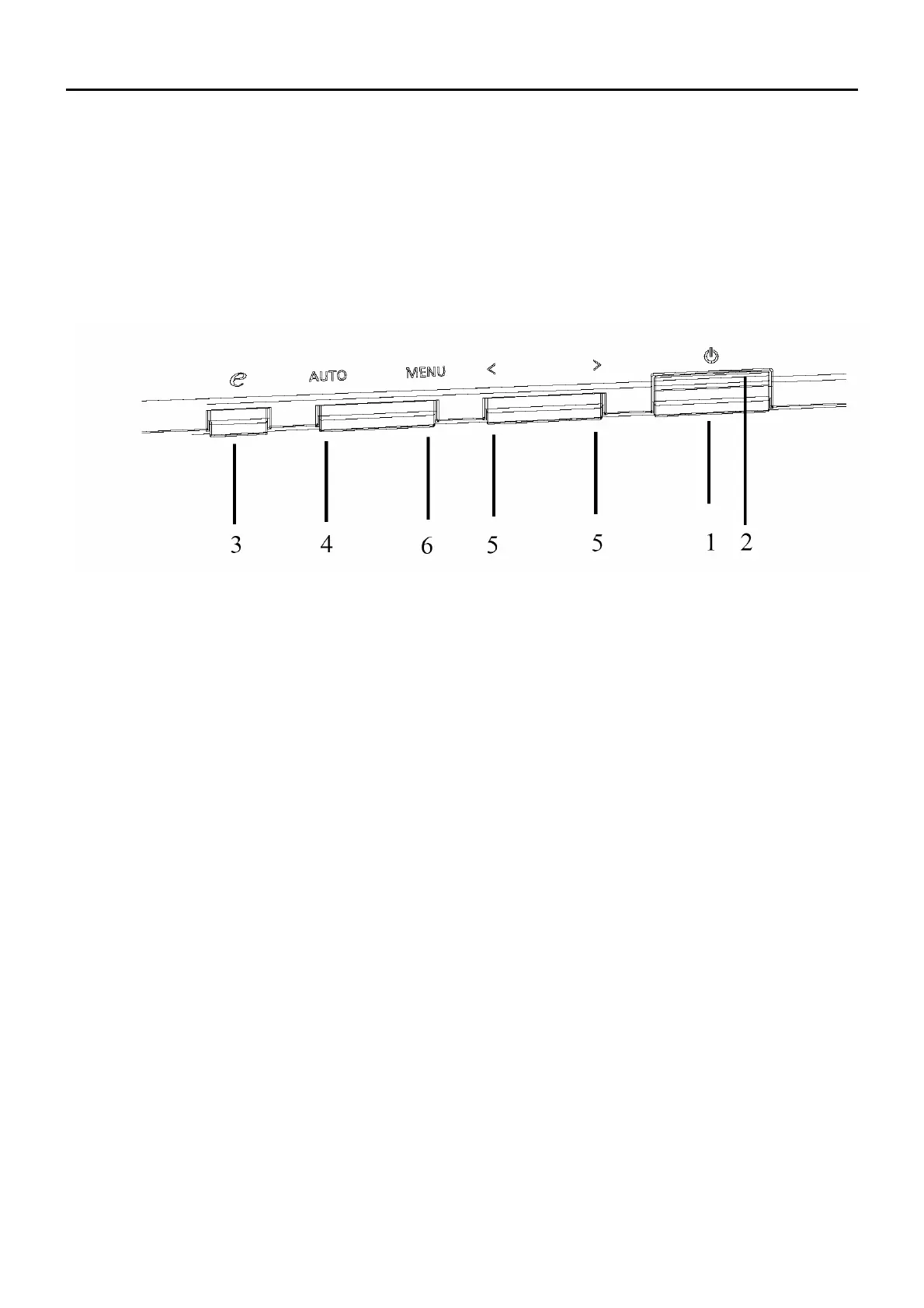

External Controls
Front panel controls
1. Power Switch:
To turn ON or OFF the power.
2. Power LED:
Lights up to indicate the power is turned ON.
3. Empowering / Exit:
1) When OSD menu is in active status, this button will act as EXIT-KEY(EXIT OSD menu).
2) When OSD menu is in off status, press this button to select scenario mode.
4. Auto Adjust button / Exit:
1) When OSD menu is in active status, this button will act as EXIT-KEY (EXIT OSD menu).
2) When OSD menu is in off status, press this button for 2 seconds to activate the Auto Adjustment function. The
Auto Adjustment function is used to set the HPos, VPos, Clock and Focus.
5. < / >
1) Press < or > to select the desired function. Press < or > to change the settings of the current function.
2) Press < or > to adjust the volume up or down (Only for Audio).
6. MENU / ENTER:
Activate OSD menu when OSD is OFF or activate/de-activate adjustment function when OSD is ON.
Chapter 2
http://www.wjel.net

Acer X193HQ Specifications

General

Display diagonal	18.5 \
Display resolution	1366 x 768 pixels
Viewable size, vertical	230 mm
Contrast ratio (typical)	-
Viewable size, horizontal	410 mm
Viewing angle, horizontal	160 °
Digital vertical frequency	55 - 75 Hz
Digital horizontal frequency	30 - 80 kHz
Display brightness (typical)	300 cd/m²
HDCP	Yes
Product color	Black
Panel mounting interface	100 x 100 mm
Power consumption (typical)	17 W
Sustainability certificates	ENERGY STAR

Weight and Dimensions

Depth (without stand)	163.7 mm
Width (without stand)	454 mm
Height (without stand)	334.7 mm
Weight (without stand)	3600 g
