17

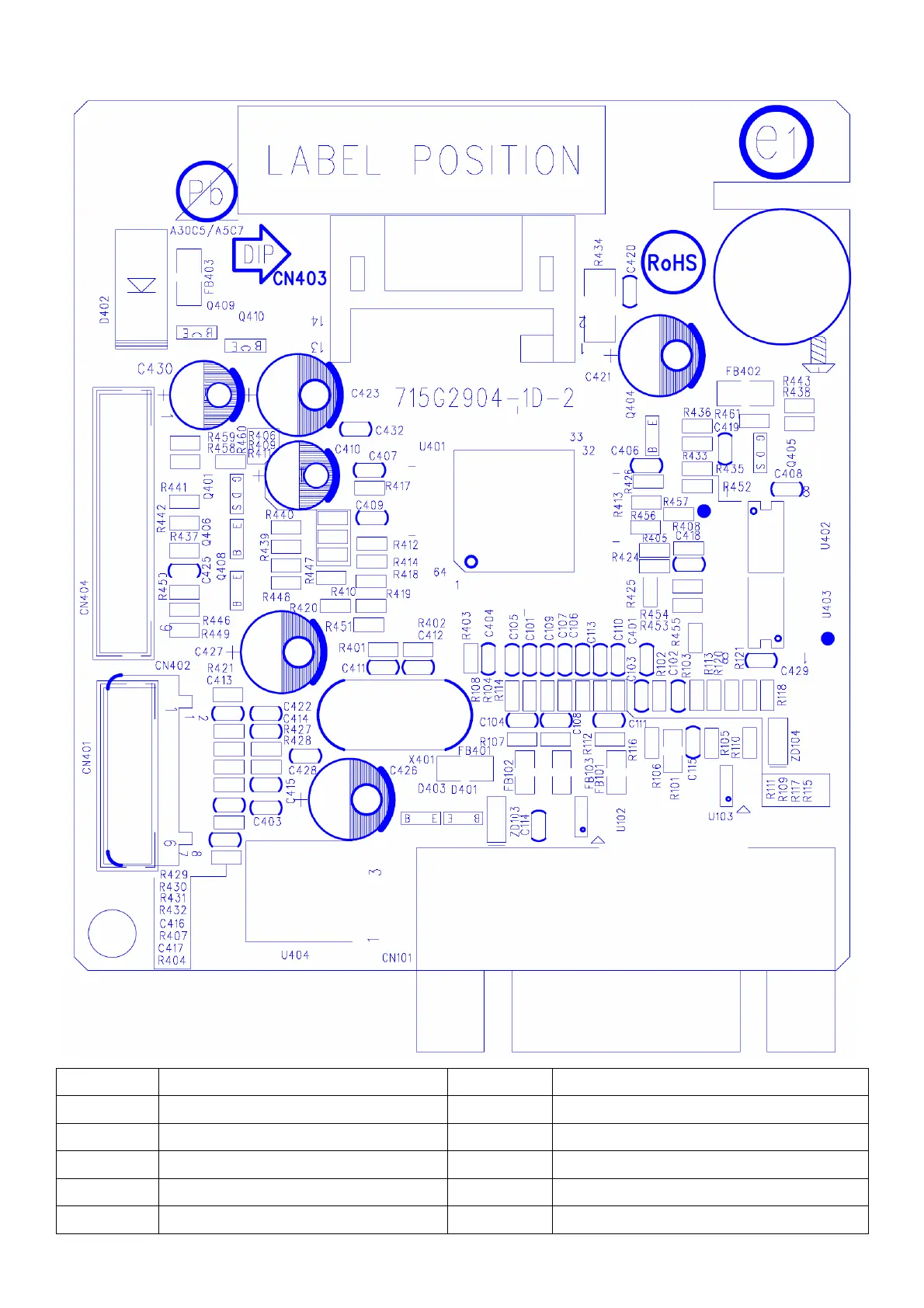

Main Board Layout
Symbol Description Symbol Description
U401 IC TSUM1PFR-LF CN401 WAFER 6PIN
U404 IC AP1117D33L-13 TO252-3L DIODES CN404 WAFER 9P RIGHT ANELE PITCH
U103 IC AZC099-04S SOT23-6L CN403 CONNECTOR
U102 IC AZC099-04S SOT23-6L X401 14.31818MHZ/32PF/49US
U402 SST25VF010A-33-4C-SAE CN101 D-SUB 15PIN
