A；＋V D；COM
B；NC E；NC
C；－V F；SIG
Connector (Pin;R03-JB6F)
Connector (Soket;R03-PB6M)

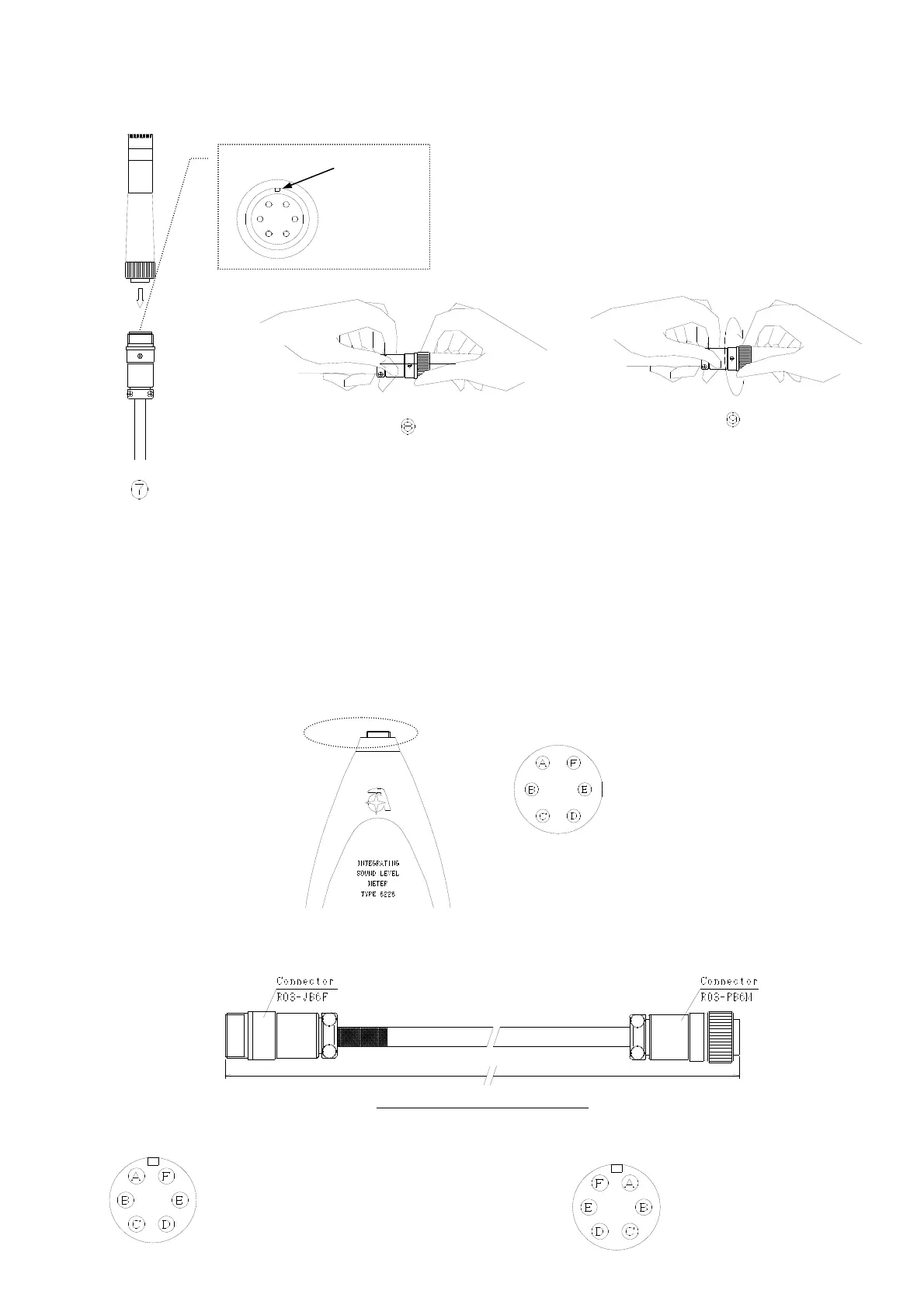

3) Attach microphone to the female connector of extension cable.
【Wiring diagram of Main body side connector】
【Wiring diagram of Extension cable】
Extension cable(2m～30m)
※
Note; Do not turn only the threaded reraining ring connecting.
It causes damage to the connector.
A；＋V E；NC
B；NC F；SIG
C；－V
D；COM, Shield
Mach key
A；+7V E；NC
B；NC F；SIG
C；－6.4V
D；GND
⑦Mach key groove of body’s connector with the connector of extension cable and
insert.
⑧Push the connector of extension cable.
⑨Turn the threaded reraining ring a little as shown repeat ⑧ and ⑨ 5-8 times
and you can connect.
Connector (Soket;Type R03-R6F)
