Acom 1010 User Manual

User's Manual | ACOM 1010 | HF Linear Amplifier
Page
18
of
40
| S e c t i o n INSTALLATION
July 2021
g) Preparation of wall outlet
WARNING
Before connecting the amplifier to your mains supply using a licensed electrician, check
that the supply is correctly wired, and is adequate for power consumption up to
1200 VA. Make certain that the grounding lead is connected properly and that it has a
cross section not less than the cross section of the phase conductor in the wall outlet for
the amplifier.
It is preferable that you use the wall outlet closest to the source. The installation leads should be at least
1.0 mm² (AWG 17 or SWG 18) at operating 200-240VAC and 1.5 mm² (AWG 15 or SWG 17) at 100-120VAC
(recommended values if there are no stricter requirements by your local standard).
Check that the panel fuse has a free capacity for the additional load from the amplifier as specified in
Sections 5.3 Fuse Replacement and 6.1.i) Mains Power Consumption. If you connect the amplifier to a different
mains outlet, be sure that you check it, too.
Make sure the main Power switch (marked "ON", see Figure 3-1 Front panel - Display and Controls) on the
front panel is in OFF position (see Figure 2-2 Power rocker switch in OFF or ON position) and insert amplifier's
mains plug into the wall outlet prepared for it. The amplifier remains switched off (with the "ON" indicator
dark).

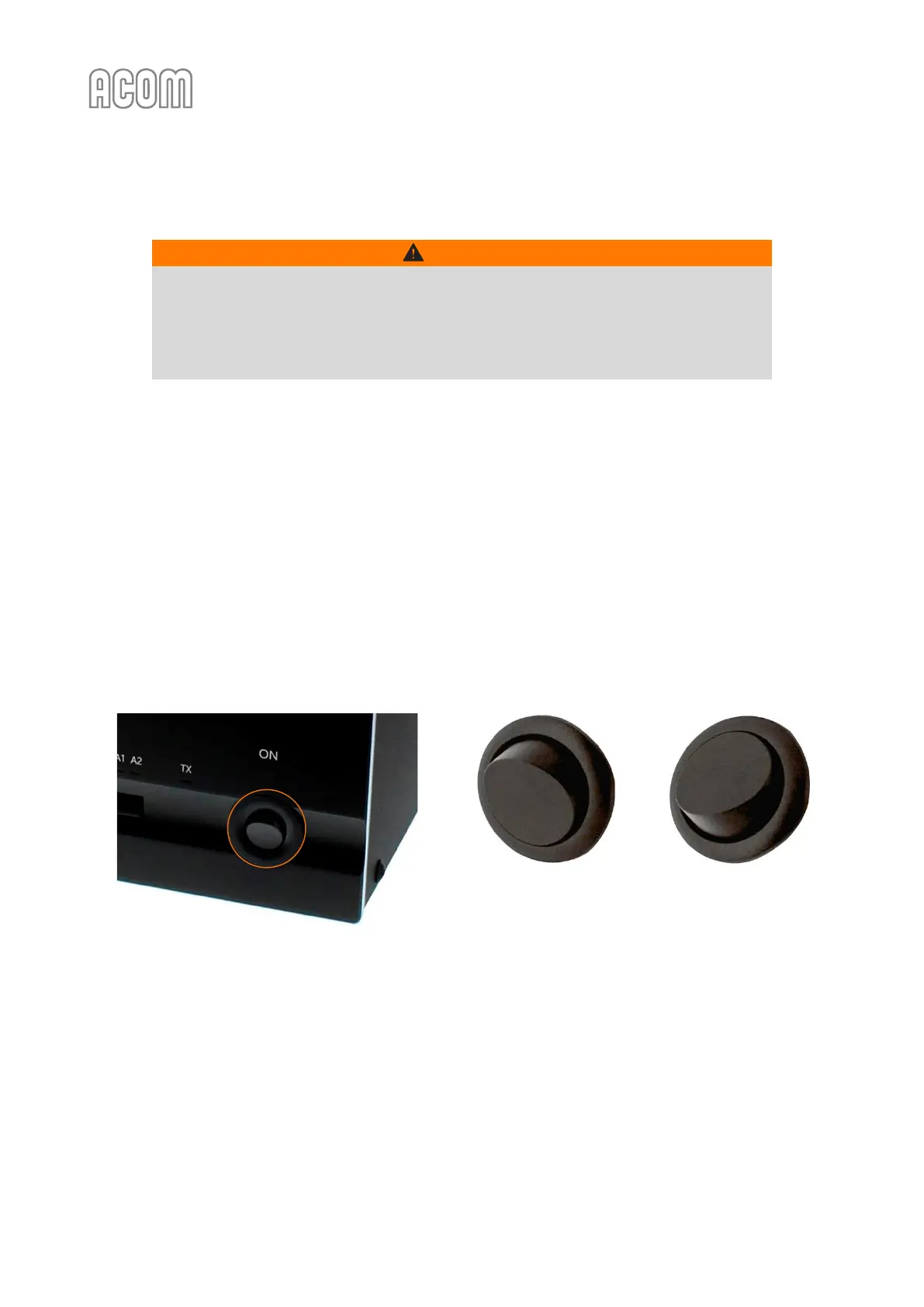

Figure 2-2 Power rocker switch in OFF or ON position
OFF position
ON position
Figure 2-2 Power rocker switch in OFF or ON position

Acom 1010 Specifications

General

Complies with CE safety and electromagnetic compatibility requirements, as well as FCC regulations	Yes
Power Output	1000 W PEP
Modes	SSB, CW, RTTY, AM, FM
Power Supply	200-240VAC or 100-120VAC, 50-60Hz, single phase.
Cooling	Forced air
Harmonic Output	-50 dB
Input Impedance	50 Ohms
Output Impedance	50 Ohms
Tube	4CX800A
