This 15-way D-type socket is used to connect your monitor to the computer (it
not suitable for TTL RGB monitors).

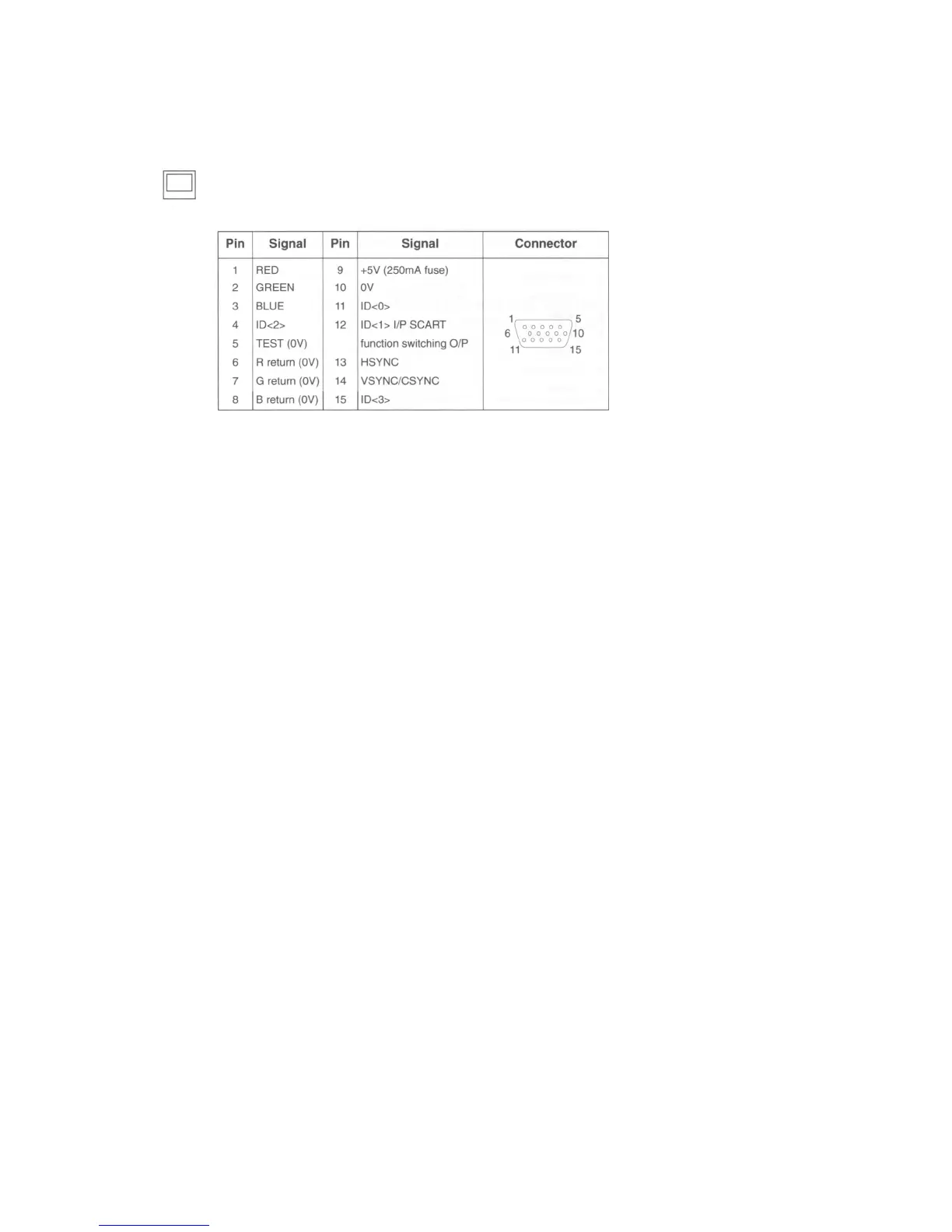

The pins on the socket are as follows:
See
Appendix
B: Monitor connections on page 67 for information on monitors that use
this socket. See your supplier for information on the types of colour monitors that
work with the computer.
Computer power cable
Use this to connect the computer to a standard power outlet.
ON/OFF switch
This is the computer's power switch. When you switch it on, the ON/OFF indicator
light comes on.
Expansion card blanking panel
The blanking panel covers the expansion card slot when not in use.
Appendix
E:
Inside the computer on page 87 tells you where to fit expansion cards, and how to
remove the blanking panel.
Expansion cards make your computer more versatile. Ask your supplier about
expansion cards that might be useful to you.
