Acorn A3010 User Manual

Appendix D: Hardware components and connectors
Mouse connector

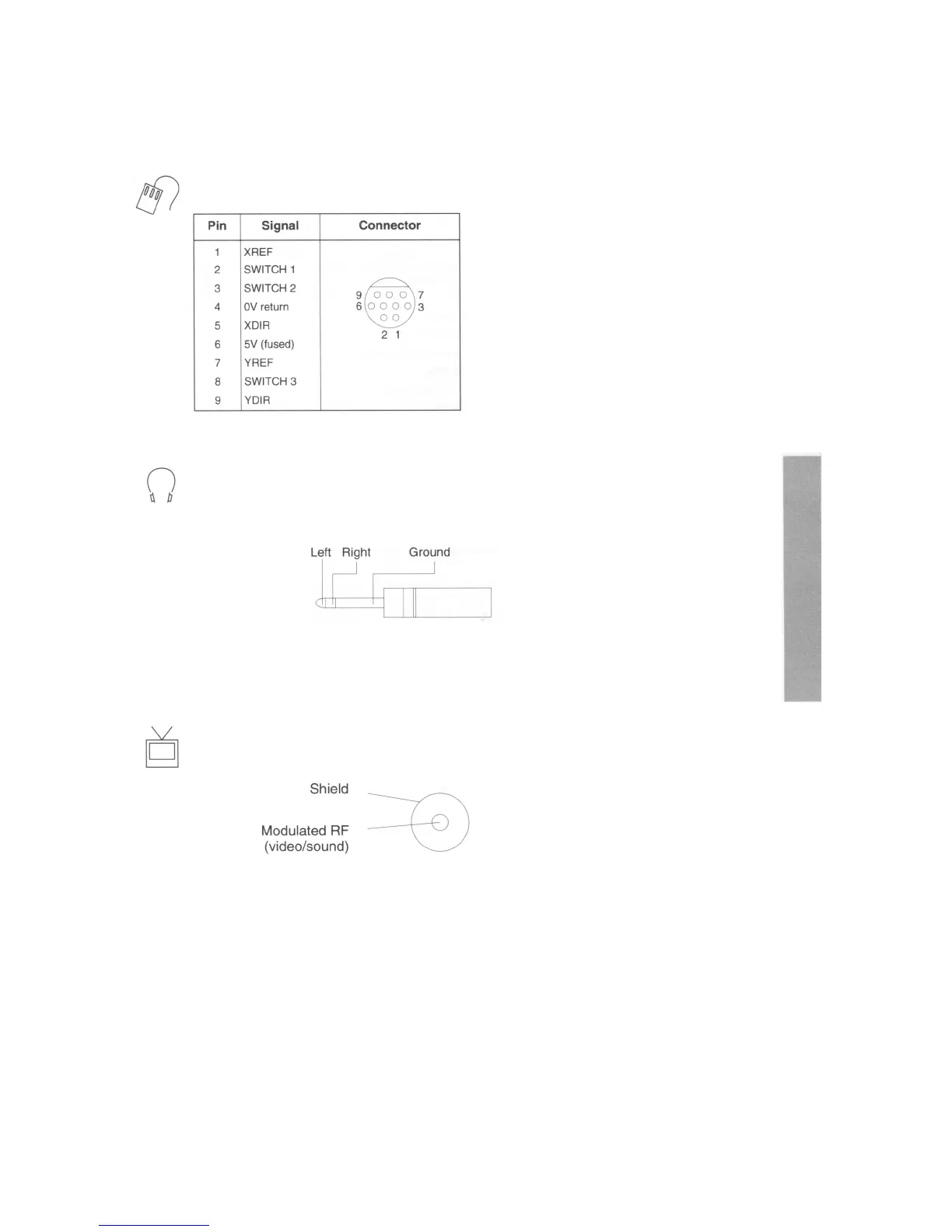

The mouse has a 9-way mini-DIN plug that goes into the 9-way mini-DIN socket on
the back of the computer. The pins on the socket are wired as follows:
Headphones
The headphones 32Ohm socket allows you to connect stereo headphones or your
stereo amplifier system to the computer, through which you can hear sound produced
by the computer. The lead must have a 3.5mm stereo jack plug (as used on personal
stereos).
When you connect headphones to this socket, the computer's internal speaker is
disabled.
TV modulator socket
Use this socket to connect the aerial of a standard colour TV to your computer. The
connector is wired as follows:
85
