Cooling Fan Relay (24V)
Cooling Fan Relay (24V)
The Cooling Fan Relay is a switching device that controls power to the Cooling Fans.
Testing
With oven disconnected from the Power Supply, disconnect the Wires from the device.
Check resistance across Coil:
RD to BK À550 Ω (3/16” terminals)
Check continuity across contacts:
COM to NC = Continuity
COM to NO = Open

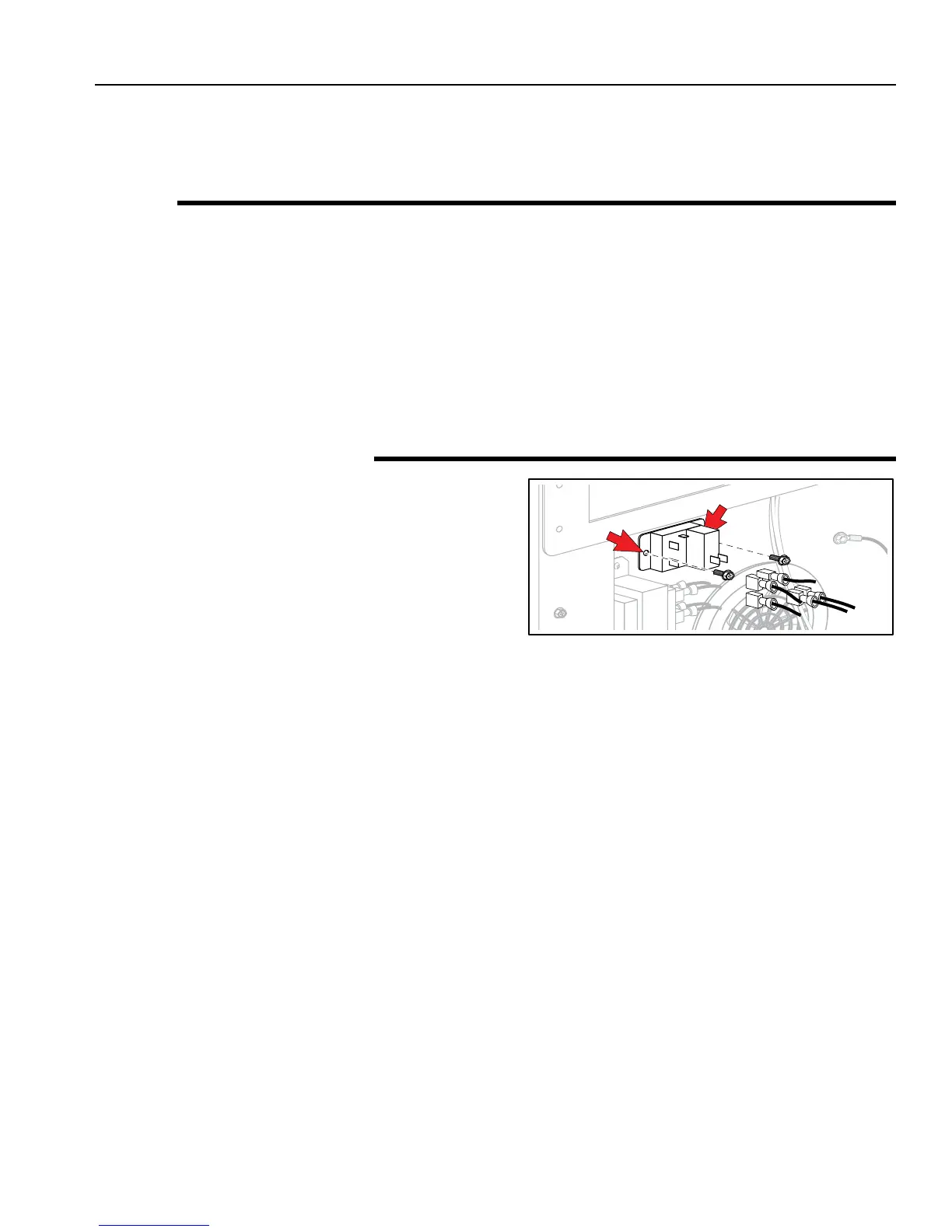

Removal and Replacement
1. Disconnect oven from Power Supply.
2. Remove Top, Right, Left and Rear Panels
(see Panel Removal).
3. Note all Wire locations.
4. Remove all Wires from the device.
5. Remove two (2) Screws securing device.
6. To replace, reverse these steps.
