Electrotherapy Parameter Adjustment – Clinician Hand
Control Modes of Use
The Hand Control Protocols provide the clinician with additional
control over the following.
 Output intensity can be set using either the Clinician Hand
Control or the Rotary Selector Dial
 Electrical stimulation ON (Start Estim) and Off (Stop Estim)
times can be activated using either the Clinician Hand Control
or buttons on the screen.

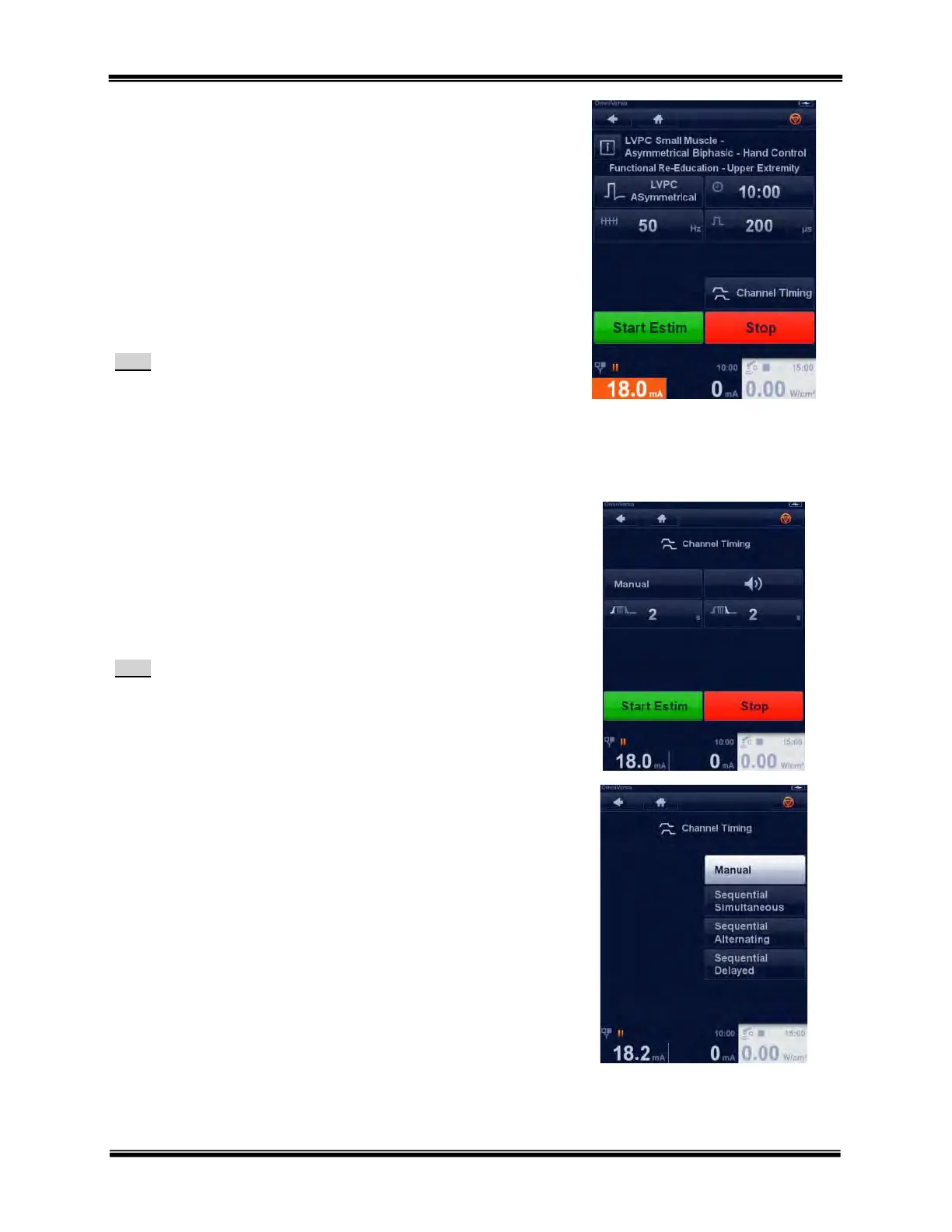

Select “Channel Timing” to view Channel Timings and Remote Modes
of use.
Note:
 As soon as output intensity is set either from the Clinician
Hand Control or the Rotary Selector Dial the Start Estim and
Stop buttons appear.
 The Electrotherapy section provides detailed electrotherapy
setup information.
Channel Timing Menu – Channel Interactions
The Clinician Hand Control Channel Interaction is defaulted to the
Manual mode of use. The options available will depend if you have
selected a Single Chanel use (i.e. Ch. A or B only) or a Two Channel
use (i.e. Ch. A and B together).
Select “Manual” to enter the Channel Interactions submenu for a Two
Channel setup
Note:
The Channel Timing menu also provides access to electrotherapy
Ramp up and Ramp down time and the option to have audible tones
heard when stimulation is activated On or Off.
Channel Interactions – Two Channel Operation
When a two channel setup (Ch. A+B) is selected Channel Interaction
options are as follows.
 Manual: Ch. A+B Ramp Up and Ramp Down Times are
preset and the same for both channels. Stimulation On time
(Start Estim) and Off time (Stop Estim) are controlled by the
clinician using either the Clinician Hand Control or
commands on the Main Touchscreen Display.
 Sequential Simultaneous: Ch. A+B Ramp Up Time,
Stimulation On Time and Ramp Down Time are the same for
both channels. Output stimulation from Ch. A+B occurs
Simultaneously.
 Sequential Alternating: Ch. A+B Ramp Up Time,
Stimulation On Time and Ramp Down Time are the same for
both channels. Output stimulation from Ch. A+B alternates
first Ch. A then Ch. B.
 Sequential Delayed: Ch. A+B Ramp Up Time, Stimulation
On Time and Ramp Down Time are the same for both
